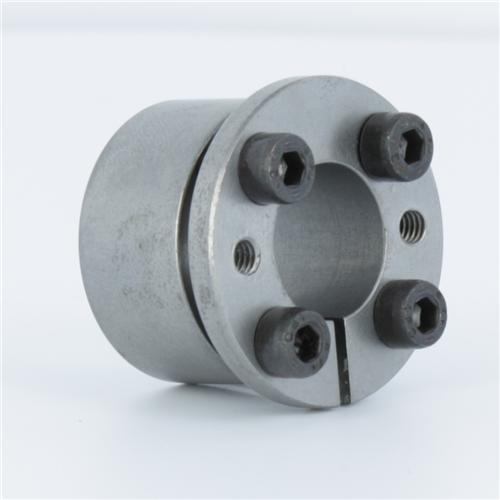

T601014 by Fenner Drives | B-Loc B106 | 14mm | Steel
Fenner Drives - Power Transmission - Keyless Locking Devices - B-Loc® B106 - Steel - Metric

T601014 by Fenner Drives | B-Loc B106 | 14mm | Steel
Sale price$57.19
Product Data:
Brand:
Series:
Overview: | |||
---|---|---|---|
|
|||
Description: | |||
** B-LOC Series B106 Keyless Bushings are also available with optional integrated spacer sleeve (ideal for very narrow drive elements). Spacers are 0.275" wide for B106 sizes with D = 2.559" and smaller, and 0.315" wide for all others Features of Fenner Drives Keyless Bushings: All Fenner Drives keyless locking devices operate using the simple wedge principle. An axial force is applied- by either a hex nut (Trantorque) or a series of annular screws (B-LOC)- to engage circular steel rings with mating tapers. The resulting wedge action creates a radial force on the tapered rings, one of which contracts to squeeze the shaft while the other expands and presses into the component bore. |
SPECIFICATIONS
Series: | B106 | Torque Transmission: | 68 |
---|---|---|---|
Axial Movement: | No | Bore Tolerance: | 28.05 |
Compliancy: | RoHS | Component Bore Diameter: | 28mm |
Hub Pressure: | 66 | Installation Torque: | 5 Nm |
Internal/ External: | Internal | Material: | Steel |
Metric/Inch: | Metric | Releasing/ Locking: | Locking |
Screw Size: | M4 x 12 | Self-Centering: | Yes |
Shaft Diameter: | 14mm | Shaft Tolerance: | 13.95 |
Taper: | Single | Thrust: | 9713 |
Part Number | d | D | D1 | L | L1 | L2 | Locking Screw Size | Ma | Mt Max. Transmitted |
Th Max. Transmitted |
Ph | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | Qty | Size | Install Torque (Nm) |
Torque (Nm) |
Thrust (N) |
Hub Pressure (N/mm2) |
|
T601014 | 14mm | 28mm | 32mm | 14mm | 20.5mm | 17mm | 4 | M4 x 12 | 5 | 68 | 9713 | 66 |
T601015 | 15mm | 28mm | 32mm | 14mm | 20.5mm | 17mm | 4 | M4 x 12 | 5 | 73 | 9713 | 66 |
T601018 | 18mm | 47mm | 52mm | 17mm | 28.5mm | 22.5mm | 5 | M6 x 20 | 16 | 236 | 26234 | 87 |
T601019 | 19mm | 47mm | 52mm | 17mm | 28.5mm | 22.5mm | 5 | M6 x 20 | 16 | 249 | 26234 | 87 |
T601020 | 20mm | 47mm | 52mm | 17mm | 28.5mm | 22.5mm | 5 | M6 x 20 | 16 | 262 | 26234 | 87 |
B601022 | 22mm | 47mm | 52mm | 17mm | 28.5mm | 22.5mm | 5 | M6 x 20 | 16 | 289 | 26234 | 87 |
T601024 | 24mm | 50mm | 56.5mm | 17mm | 28.5mm | 22.5mm | 6 | M6 x 20 | 16 | 378 | 31481 | 98 |
T601025 | 25mm | 50mm | 56.5mm | 17mm | 28.5mm | 22.5mm | 6 | M6 x 20 | 16 | 394 | 31481 | 98 |
B601028 | 28mm | 55mm | 61.5mm | 17mm | 28.5mm | 22.5mm | 6 | M6 x 20 | 16 | 441 | 31481 | 89 |
B601030 | 30mm | 55mm | 61.5mm | 17mm | 28.5mm | 22.5mm | 6 | M6 x 20 | 16 | 472 | 31481 | 89 |
T601032 | 32mm | 60mm | 66.5mm | 17mm | 28.5mm | 22.5mm | 8 | M6 x 20 | 16 | 672 | 41975 | 109 |
B601035 | 35mm | 60mm | 66.5mm | 17mm | 28.5mm | 22.5mm | 8 | M6 x 20 | 16 | 735 | 41975 | 109 |
T601038 | 38mm | 65mm | 71.5mm | 17mm | 28.5mm | 22.5mm | 8 | M6 x 20 | 16 | 798 | 41975 | 101 |
B601040 | 40mm | 65mm | 71.5mm | 17mm | 28.5mm | 22.5mm | 8 | M6 x 20 | 16 | 839 | 41975 | 101 |
T601042 | 42mm | 75mm | 83.5mm | 20mm | 34.5mm | 26.5mm | 7 | M8 x 25 | 41 | 1515 | 72167 | 128 |
B601045 | 45mm | 75mm | 83.5mm | 20mm | 34.5mm | 26.5mm | 7 | M8 x 25 | 41 | 1624 | 72167 | 128 |
T601048 | 48mm | 80mm | 88.5mm | 20mm | 34.5mm | 26.5mm | 7 | M8 x 25 | 41 | 1732 | 72167 | 120 |
B601050 | 50mm | 80mm | 88.5mm | 20mm | 34.5mm | 26.5mm | 7 | M8 x 25 | 41 | 1804 | 72167 | 120 |
B601055 | 55mm | 85mm | 93.5mm | 20mm | 28.5mm | 22.5mm | 8 | M8 x 25 | 41 | 2268 | 82476 | 129 |
B601060 | 60mm | 90mm | 98mm | 20mm | 34.5mm | 26.5mm | 8 | M8 x 25 | 41 | 2474 | 82476 | 122 |
T601063 | 63mm | 95mm | 102mm | 20mm | 34.5mm | 26.5mm | 9 | M8 x 25 | 41 | 2923 | 92786 | 130 |
T601065 | 65mm | 95mm | 102mm | 20mm | 34.5mm | 26.5mm | 9 | M8 x 25 | 41 | 3016 | 92786 | 130 |
T601070 | 70mm | 110mm | 119mm | 24mm | 40.5mm | 30.5mm | 8 | M10 x 30 | 81 | 4624 | 132127 | 133 |
B601075 | 75mm | 115mm | 124mm | 24mm | 40.5mm | 30.5mm | 8 | M10 x 30 | 81 | 4955 | 132127 | 127 |
B601080 | 80mm | 120mm | 129mm | 24mm | 40.5mm | 30.5mm | 8 | M10 x 30 | 81 | 5285 | 132127 | 122 |
T601085 | 85mm | 125mm | 134mm | 24mm | 40.5mm | 30.5mm | 9 | M10 x 30 | 81 | 6317 | 148643 | 131 |
B601090 | 90mm | 130mm | 139mm | 24mm | 40.5mm | 30.5mm | 9 | M10 x 30 | 81 | 6689 | 148643 | 126 |
T601095 | 95mm | 135mm | 144mm | 24mm | 40.5mm | 30.5mm | 10 | M10 x 30 | 81 | 7845 | 165159 | 135 |
B601100 | 100mm | 145mm | 154mm | 26mm | 45mm | 33mm | 8 | M12 x 35 | 142 | 9901 | 198016 | 139 |
B601110 | 110mm | 155mm | 164mm | 26mm | 45mm | 33mm | 8 | M12 x 35 | 142 | 10891 | 198016 | 130 |
B601120 | 120mm | 165mm | 174mm | 26mm | 45mm | 33mm | 9 | M12 x 35 | 142 | 13366 | 222768 | 138 |
T601130 | 130mm | 180mm | 189mm | 34mm | 55mm | 41mm | 9 | M14 x 40 | 225 | 19751 | 303855 | 132 |
B601140 | 140mm | 190mm | 199mm | 34mm | 55mm | 41mm | 9 | M14 x 40 | 225 | 21270 | 303855 | 125 |
T601150 | 150mm | 200mm | 209mm | 34mm | 55mm | 41mm | 10 | M14 x 40 | 225 | 25321 | 337617 | 132 |
B601160 | 160mm | 210mm | 219mm | 34mm | 55mm | 41mm | 11 | M14 x 40 | 225 | 29710 | 371379 | 138 |
B601170 | 170mm | 225mm | 234mm | 44mm | 65mm | 51mm | 12 | M14 x 40 | 225 | 34437 | 405140 | 109 |
B601180 | 180mm | 235mm | 244mm | 44mm | 65mm | 51mm | 12 | M14 x 40 | 225 | 36463 | 405140 | 104 |
T601190 | 190mm | 250mm | 259mm | 44mm | 65mm | 51mm | 15 | M14 x 40 | 225 | 48110 | 506425 | 122 |
B601200 | 200mm | 260mm | 269mm | 44mm | 65mm | 51mm | 15 | M14 x 40 | 225 | 50643 | 506425 | 117 |
T601220 | 220mm | 285mm | 294mm | 50mm | 73mm | 57mm | 12 | M16 x 45 | 348 | 60747 | 552244 | 103 |
T601240 | 240mm | 305mm | 314mm | 50mm | 73mm | 57mm | 15 | M16 x 45 | 348 | 82837 | 690305 | 120 |
T601260 | 260mm | 325mm | 334mm | 50mm | 73mm | 57mm | 18 | M16 x 45 | 348 | 107688 | 828366 | 135 |
T601280 | 280mm | 355mm | 364mm | 60mm | 85mm | 67mm | 16 | M18 x 50 | 475 | 124894 | 892098 | 111 |
T601300 | 300mm | 375mm | 384mm | 60mm | 85mm | 67mm | 18 | M18 x 50 | 475 | 150542 | 1003610 | 118 |
T601320 | 320mm | 405mm | 414mm | 74mm | 102mm | 82mm | 18 | M20 x 50 | 678 | 206318 | 1289490 | 114 |
T601340 | 340mm | 425mm | 434mm | 74mm | 102mm | 82mm | 21 | M20 x 50 | 678 | 255749 | 1504405 | 127 |
T601360 | 360mm | 455mm | 464mm | 86mm | 116mm | 94mm | 18 | M22 x 60 | 915 | 287427 | 1596815 | 108 |
T601380 | 380mm | 475mm | 484mm | 86mm | 116mm | 94mm | 21 | M22 x 60 | 915 | 353961 | 1862951 | 121 |
T601400 | 400mm | 495mm | 504mm | 86mm | 116mm | 94mm | 21 | M22 x 60 | 915 | 372590 | 1862951 | 116 |
TOLERANCE (TL) Bore diameter machined to D -0/+TL TL = .05mm for bores up to 120mm .08mm for bores up to 305mm .10mm for bores over 305mm d = Shaft diameter machined to d +0/-TL Note: Series B106 also available with optional integrated spacer sleeve (ideal for very narrow drive elements). Spacers are 0.275" wide for B106 sizes with D = 2.559" (65mm) and smaller, and 0.315" wide for all others.
