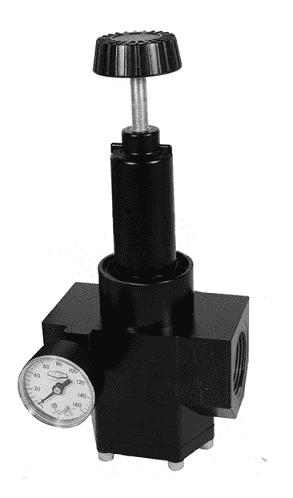

R40-0BRG Dixon Valve Wilkerson 1-1/2" High Flow Regulator with Gauge - 1200 SCFM

R40-0BRG Dixon Valve Wilkerson 1-1/2" High Flow Regulator with Gauge - 1200 SCFM

Sale price$629.17
Quantity Price Each
15–29 $566.25
30+ $503.34
Discounts applied at checkout.

Wilkerson High Flow Regulators On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.

 More payment options

Product Data:
Features:
  • 0-125 PSI adjusting range.
  • Self-relieving standard.
  • Piston operated.
  • Can be installed with the adjusting knob in any position
  • To increase regulated pressure, pull adjusting knob up and turn clockwise. To reduce pressure, turn knob counter clockwise.
  • Two 1/4" NPT gauge ports standard on models without gauge, one 1/4" NPT gauge port standard on models with gauge - can be used for additional outlet ports.
  • Models supplied without gauge use a GC230 gauge.
Part Number Size SCFM PSI Min/Max Temp Weight (Lbs.)
With Gauge
R40-0BRG 1-1/2" 1200 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 10.8700
R40-0CRG 2" 1200 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 10.0400
Without Gauge
R40-0BR 1-1/2" 1200 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 10.8500
R40-0CR 2" 1200 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 10.0200

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
