NAC6-46-1 Flexco Hinge Pin for SR Scalloped Edge R6 Rivet Hinged Fasteners - 40943 - Nylon Covered Armored Cable (13/32" dia.) - 46" Belt Width

NAC6-46-1 by Flexco | #40943 | Hinge Pin for SR Scalloped Edge R6 Rivet Hinged Fasteners | 46" Belt Width | Nylon Covered Armored Cable (13/32" dia.)

$77.76 - $77.76
$77.76
$77.76 - $77.76
$77.76
FREE SHIPPING DOMESTICALLY!
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.


PRODUCT DESCRIPTION

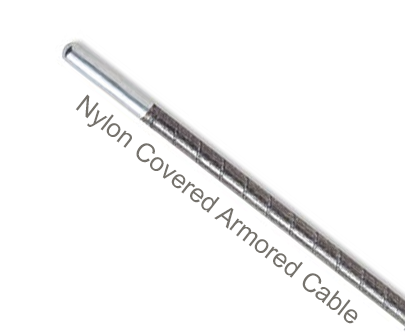

Flexco® SR™ Rivet Hinged Fastening System - Hinge Pins for R6 - Nylon Covered Armored Cable


The Flexco® SR™ Rivet Hinged Fastening System has earned a reputation for quality and performance in the most demanding material handling applications on earth. Wherever belt conveyors are used, you need a fastener system that lets you set up, splice, and get out of the way... fast. Flexco SR fasteners deliver the performance, long life, and easy installation that maximize belt availability and help keep productivity on a roll.

Flexco Rivet Hinged Fasteners combine top and bottom fastener plates, which are joined at one end by two wide hinge loops. Each pair of plates sandwich the belt end and are secured to the belt with a staggered pattern of rivets. The rivets penetrate the belt without damaging or weakening the belt carcass providing maximum resistance to pull-out and evenly distributed splice tension across the width of the belt. No matter what the belt condition, Flexco SR fasteners are a good choice for both new and older, worn belts. Rivet hinged fasteners can be used on belts ranging from 1/8" to 1" (3 - 25 mm) after skive with pulley diameters over 5" (127 mm). Concerns about comparable vulcanized splice strength can be dismissed as rivet hinged fasteners have a long history of service on belts with mechanical fastener rating of up to 2000 P.I.W. (350 kN/m).

Each Package Contains:
  • 1 Hinge Pin
Applications:
  • Coal and Hard Rock, Underground and Surface Mining, Wood Processing, Asphalt Plants, Construction and Road Equipment
Features:
  • For use with R6 Rivet Hinged Belt Fasteners.
Literature:


Part Number Belt Width Hinge Pin Diameter
NAC6-24-1 24" 13/32"
NAC6-30-1 30" 13/32"
NAC6-36-1 36" 13/32"
NAC6-38-1 38" 13/32"
NAC6-40-1 40" 13/32"
NAC6-42-1 42" 13/32"
NAC6-44-1 44" 13/32"
NAC6-46-1 46" 13/32"
NAC6-48-1 48" 13/32"
NAC6-54-1 54" 13/32"
NAC6-60-1 60" 13/32"
NAC6-72-1 72" 13/32"
NAC6-84-1 84" 13/32"
