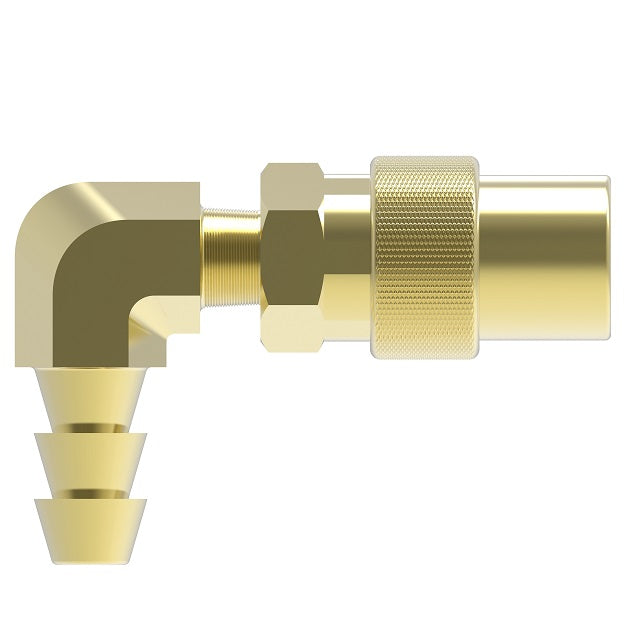

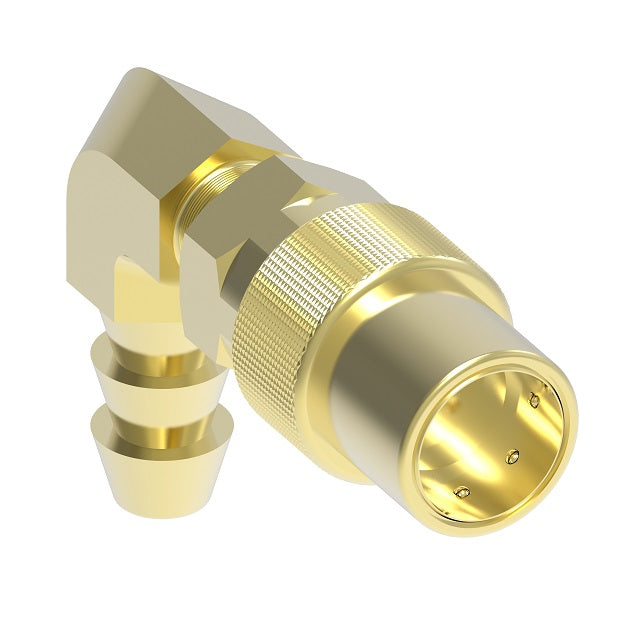

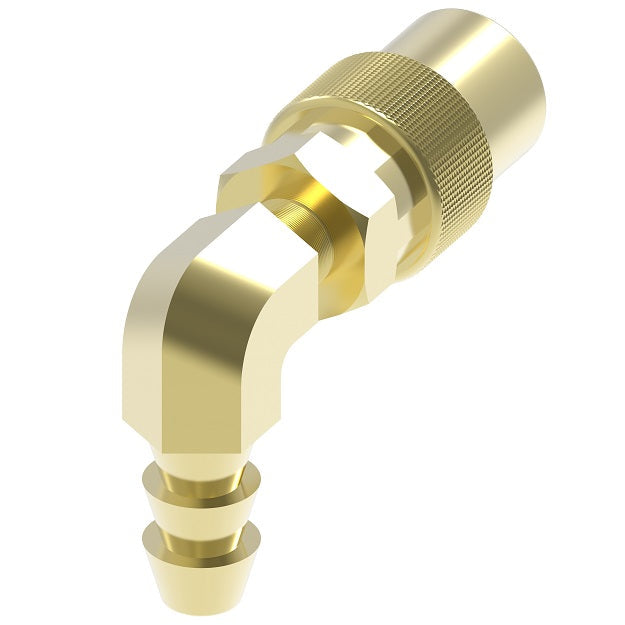

FTS214 Hansen by Danfoss | Thermal Management Quick Disconnect Coupling | Flo-Temp Series | Hose Barb | 90° Elbow | 1/4" Hose ID x 1/4" Body Size | Socket | Non-Valved | Buna-N Seal | Brass
FTS214 Hansen by Danfoss | Thermal Management Quick Disconnect Coupling | Flo-Temp Series | Hose Barb | 90° Elbow | 1/4" Hose ID x 1/4" Body Size | Socket | Non-Valved | Buna-N Seal | Brass
FTS214 Hansen by Danfoss | Thermal Management Quick Disconnect Coupling | Flo-Temp Series | Hose Barb | 90° Elbow | 1/4" Hose ID x 1/4" Body Size | Socket | Non-Valved | Buna-N Seal | Brass

FTS214 Hansen by Danfoss | Thermal Management Quick Disconnect Coupling | Flo-Temp Series | Hose Barb | 90° Elbow | 1/4" Hose ID x 1/4" Body Size | Socket | Non-Valved | Buna-N Seal | Brass

Sale price$16.76
Quantity Price Each
20–49 $15.92
50–99 $15.08
100+ $13.41
Discounts applied at checkout.

Hansen® by Danfoss
Quick Disconnect Coupling | Flo-Temp Series

Quick Disconnect for Thermal Management Applications.

Danfoss' Flo-Temp™ quick disconnect couplings provide the flow needed to cool or heat molds and die casting dies. Sockets are available non-valved for maximum flow and valved to prevent fluid loss when disconnected.

Flo-Temp couplings can be used with water-glycol, hot water and hot oil.


 More payment options

Product Data:

Brand:
  • Hansen
Series:
  • Flo-Temp Series
Shape:

90 Degree
Features:
  • Non valved straight through models for maximum flow.
  • Valved sockets/females for automatic shut-off when line is disconnected.
  • Brass plugs/males with male pipe thread for recessed mounting to avoid damage to plugs/males when molds are being changed or stored.
Applications & Markets:
  • Injection Molding
  • Heating and Cooling
Materials:
  • Standard body material: Brass
Size Max. Operating Pressure Min. Burst Pressure Rated Flow
1/4" 14 bar 200 psi 56 bar 800 psi 8.3 lpm 2.2 gpm
3/8" 14 bar 200 psi 56 bar 800 psi 17 lpm 4.5 gpm
1/2" 14 bar 200 psi 56 bar 800 psi 49 lpm 13 gpm
Female/Socket (Figure 1)
Flo-Temp Series | 90° Elbow | Hose Stem
Non-Valved
Part Number		 Valved
Part Number		 Coupling Type Body Size Type Hose ID Figure Dimensions
A B C
FTS214 - Socket/Female 1/4" Hose Stem 1/4" 1 1.36"
(34.5mm)		 0.67"
(17.0mm)		 2.17"
(55.1mm)
FTS214HP - Socket/Female 1/4" Push-On Hose Stem 1/4" 1 1.18"
(30.0mm)		 0.67"
(17.0mm)		 1.76"
(44.7mm)
FTS215 - Socket/Female 1/4" Hose Stem 5/16" 1 1.18"
(30.0mm)		 0.67"
(17.0mm)		 1.76"
(44.7mm)
FTS216 - Socket/Female 1/4" Hose Stem 3/8" 1 1.17"
(29.7mm)		 0.67"
(17.0mm)		 1.76"
(44.7mm)
FTS216HP - Socket/Female 1/4" Push-On Hose Stem 3/8" 1 1.17"
(29.7mm)		 0.67"
(17.0mm)		 1.76"
(44.7mm)
FTS316 - Socket/Female 3/8" Hose Stem 3/8" 1 1.60"
(40.6mm)		 0.88"
(22.4mm)		 2.43"
(61.7mm)
FTS316HP - Socket/Female 3/8" Push-On Hose Stem 3/8" 1 1.60"
(40.6mm)		 0.88"
(22.4mm)		 2.43"
(61.7mm)
FTS318 FTS318V Socket/Female 3/8" Hose Stem 1/2" 1 1.60"
(40.6mm)		 0.88"
(22.4mm)		 2.43"
(61.7mm)
FTS318HP - Socket/Female 3/8" Push-On Hose Stem 1/2" 1 1.60"
(40.6mm)		 0.88"
(22.4mm)		 2.43"
(61.7mm)
Male/Plug (Figure 2)
Flo-Temp Series | Male Thread
Part Number Coupling Type Body Size Port Size Thread Type Figure Dimensions Installation Recess
A B C DIA Depth
FTP251 Plug/Male 1/4" 1/8" 1/8-27 Male NPTF 2 0.94"
(23.9mm)		 0.49"
(12.4mm)		 0.44"
(11.2mm)		 0.69"
(17.5mm)		 0.69"
(17.5mm)
FTP251BST Plug/Male 1/4" 1/8" 1/8-28 Male BSPT 2 0.94"
(23.9mm)		 0.49"
(12.4mm)		 0.44"
(11.2mm)		 0.69"
(17.5mm)		 0.69"
(17.5mm)
FTP252 Plug/Male 1/4" 1/4" 1/4-18 Male NPTF 2 1.15"
(29.2mm)		 0.63"
(16.0mm)		 0.56"
(14.2mm)		 0.84"
(21.3mm)		 0.94"
(23.9mm)
FTP252BST Plug/Male 1/4" 1/4" 1/4-19 Male BSPT 2 1.15"
(29.2mm)		 0.63"
(16.0mm)		 0.56"
(14.2mm)		 0.84"
(21.3mm)		 0.94"
(23.9mm)
FTP253 Plug/Male 1/4" 3/8" 3/8-18 Male NPTF 2 1.19"
(30.2mm)		 0.77"
(19.6mm)		 0.69"
(17.5mm)		 1.00"
(25.4mm)		 0.94"
(23.9mm)
FTP352 Plug/Male 3/8" 1/4" 1/4-18 Male NPTF 2 1.40"
(35.6mm)		 0.63"
(16.0mm)		 0.56"
(14.2mm)		 1.00"
(25.4mm)		 1.09"
(27.7mm)
FTP352BST Plug/Male 3/8" 1/4" 1/4-19 Male BSPT 2 1.40"
(35.6mm)		 0.63"
(16.0mm)		 0.56"
(14.2mm)		 1.00"
(25.4mm)		 1.09"
(27.7mm)
FTP353 Plug/Male 3/8" 3/8" 3/8-18 Male NPTF 2 1.40"
(35.6mm)		 0.77"
(19.6mm)		 0.69"
(17.5mm)		 1.00"
(25.4mm)		 1.13"
(28.7mm)
FTP353BST Plug/Male 3/8" 3/8" 3/8-19 Male BSPT 2 1.40"
(35.6mm)		 0.77"
(19.6mm)		 0.69"
(17.5mm)		 1.00"
(25.4mm)		 1.13"
(28.7mm)
FTP354 Plug/Male 3/8" 1/2" 1/2-14 Male NPTF 2 1.56"
(39.6mm)		 0.98"
(24.9mm)		 0.88"
(22.4mm)		 1.19"
(30.2mm)		 1.25"
(31.8mm)
FTP554 Plug/Male 1/2" 1/2" 1/2-14 Male NPTF 2 1.75"
(44.5mm)		 0.98"
(24.9mm)		 0.88"
(22.4mm)		 1.25"
(31.8mm)		 1.50"
(38.1mm)
FTP556 Plug/Male 1/2" 3/4" 3/4-14 Male NPTF 2 1.75"
(44.5mm)		 1.25"
(31.8mm)		 1.13"
(28.7mm)		 1.50"
(38.1mm)		 1.56"
(39.6mm)
Male/Plug (Figure 3)
Flo-Temp Series | Female Thread
Part Number Coupling Type Body Size Port Size Thread Type Figure Dimensions
D E Hex
FTP251F Plug/Male 1/4" 1/8" 1/8-27 Female NPTF 3 1.00"
(25.4mm)		 0.58"
(14.7mm)		 0.50"
(12.7mm)
FTP252F Plug/Male 1/4" 1/4" 1/4-18 Female NPTF 3 1.20"
(30.5mm)		 0.72"
(18.3mm)		 0.63"
(16.0mm)
FTP352F Plug/Male 3/8" 1/4" 1/4-18 Female NPTF 3 1.38"
(35.1mm)		 0.72"
(18.3mm)		 0.63"
(16.0mm)
FTP353F Plug/Male 3/8" 3/8" 3/8-18 Female NPTF 3 1.40"
(35.6mm)		 0.87"
(22.1mm)		 0.75"
(19.1mm)
FTP354F Plug/Male 3/8" 1/2" 1/2-14 Female NPTF 3 1.62"
(41.1mm)		 1.08"
(27.4mm)		 0.94"
(23.9mm)
FTP554F Plug/Male 1/2" 1/2" 1/2-14 Female NPTF 3 1.72"
(43.7mm)		 1.08"
(27.4mm)		 0.94"
(23.9mm)
FTP556F Plug/Male 1/2" 3/4" 3/4-14 Female NPTF 3 1.78"
(45.2mm)		 1.30"
(33.0mm)		 1.13"
(28.7mm)
