FFX-12-10-W by Kurt Hydraulics | Jump Size | Female O-Ring Face Seal | Swivel | for 3/4" Hose ID

FFX-12-10-W by Kurt Hydraulics | Jump Size | Female O-Ring Face Seal | Swivel | for 3/4" Hose ID

Sale price$24.92
by Kurt Hydraulics
FFX-W - O-Ring Face Seal Female Swivel
Kurt Fittings and Hose should only be used together.
 More payment options
Buy More, Save More!
Quantity Price Each
10–39 $23.42
40–79 $21.18
80+ $18.69
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Hose Barb
  • 5/8in Female O-Ring Face Seal
Special Properties:
  • Swivel
  • Jump Size

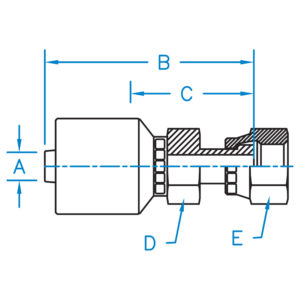

Part Number A B C D E Hose ID
(In)		 Thread
FFX-06-06-W 0.375 2.430 1.200 11/16 7/8 3/8" 11/16-16
FFX-06-08-W 0.375 2.605 1.235 3/4 15/16 3/8" 13/16-16
FFX-08-06-W N/A N/A N/A N/A N/A N/A N/A
FFX-08-08-W 0.500 2.770 1.430 7/8 1-1/16 1/2" 13/16-16
FFX-08-10-W 0.500 2.860 1.520 15/16 1-1/8 1/2" 1-14
FFX-08-12-W 0.500 2.950 1.610 1-1/8 1-3/8 1/2" 1-3/16-12
FFX-10-08-W 0.625 3.460 1.360 7/8 15/16 5/8" 13/16-16
FFX-10-10-W 0.625 3.440 1.580 15/16 1-1/8 5/8" 1-14
FFX-10-12-W 0.625 3.78 1.68 1-1/8 1-3/8 5/8" 1-3/16-12
FFX-12-10-W 0.750 3.394 1.515 1-1/8 1-1/8 3/4" 1-14
FFX-12-12-W 0.750 3.640 1.850 1-1/8 1-3/8 3/4" 1-3/16-12
FFX-12-16-W 0.750 3.660 1.870 1-3/8 1-5/8 3/4" 1-7/16-12
FFX-16-12-W 1.000 3.760 1.635 1-3/8 1-3/8 1.000" 1-3/16-12
FFX-16-16-W 1.000 3.900 1.790 1-3/8 1-5/8 1.000" 1-7/16-12
FFX-16-20-W 1.000 3.990 1.880 1-5/8 2.000 1.000" 1-11/16-12
FFX-20-20-W 1.250 4.340 1.890 1-5/8 2.000 1-1/4" 1-11/16-12
FFX-20-24-W 1.250 4.570 2.120 2-1/4 2-1/4 1-1/4" 2-12
FFX-24-24-W 1.500 4.790 2.190 2-1/4 2-1/4 1-1/2" 2-12


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
