CS8003 Fenner Drives Powermax Sprocket - Bearing Type: 6203-2RS-10 - Bore Size: 5/8" - Chain #: 80 - Teeth: 12
$26.76
SKU CS8003 Fenner Drives
Please Note: If the manufacturer is out of stock, a minimum order quantity may apply. If this applies to your order you will be contacted by our customer support team.
PRODUCT DESCRIPTION
Fenner Drives - Powermax Pulleys & Idlers - Sprockets
| Overview: | |||
|---|---|---|---|
|
|||
| Description: | |||
|

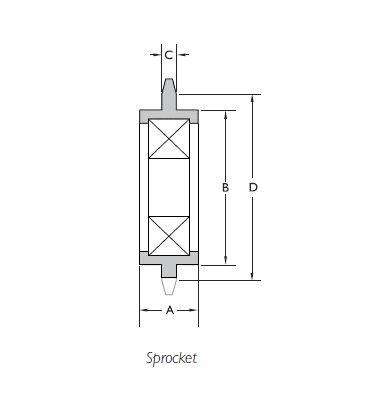

| Part Number | Chain # | # Teeth | Nominal O.D.(in) | Pitch Diameter (in) | A | B | C | Bearing Type | Bore Sizes |
|---|---|---|---|---|---|---|---|---|---|
| CS3502 | 35 | 19 | 2.48" | 2.28" | 0.67" | 1.78" | 0.164" | 6203-2RS | 17mm |
| CS4002 | 40 | 17 | 2.98" | 2.72" | 0.67" | 1.78" | 0.279" | 6203-2RS | 17mm |
| CS4003 | 40 | 17 | 2.98" | 2.72" | 0.67" | 1.78" | 0.279" | 6203-2RS-10 | 5/8" |
| CS5002 | 50 | 15 | 3.34" | 3.01" | 0.67" | 1.78" | 0.343" | 6203-2RS | 17mm |
| CS5004 | 50 | 15 | 3.34" | 3.01" | 0.67" | 1.78" | 0.343" | 6203-2RS-10 | 5/8" |
| CS5005 | 50 | 15 | 3.34" | 3.01" | 0.67" | 1.78" | 0.343" | 6203-2RS-12 | 3/4" |
| CS6002 | 60 | 13 | 3.52" | 3.14" | 0.67" | 1.78" | 0.449" | 6203-2RS | 17mm |
| CS6003 | 60 | 13 | 3.52" | 3.14" | 0.67" | 1.78" | 0.449" | 6203-2RS-10 | 5/8" |
| CS6004 | 60 | 13 | 3.52" | 3.14" | 0.67" | 1.78" | 0.449" | 6203-2RS-12 | 3/4" |
| CS8002 | 80 | 12 | 4.39" | 3.86" | 0.67" | 1.78" | 0.58" | 6203-2RS | 17mm |
| CS8003 | 80 | 12 | 4.39" | 3.86" | 0.67" | 1.78" | 0.58" | 6203-2RS-10 | 5/8" |
| CS8004 | 80 | 12 | 4.39" | 3.86" | 0.67" | 1.78" | 0.58" | 6203-2RS-12 | 3/4" |
