CS4003 by Fenner Drives | Powermax Sprocket | Bearing Type: 6203-2RS-10 | Bore Size: 5/8" | Chain #: 40 | Teeth: 17
| Quantity | Price Each |
| 50–99 | $34.07 |
| 100+ | $30.28 |
Discounts applied at checkout.
Fenner Drives - Powermax Pulleys & Idlers - Sprockets
Product Data:
Brand:
Series:
| Overview: | |||
|---|---|---|---|
|
|||
| Description: | |||
|

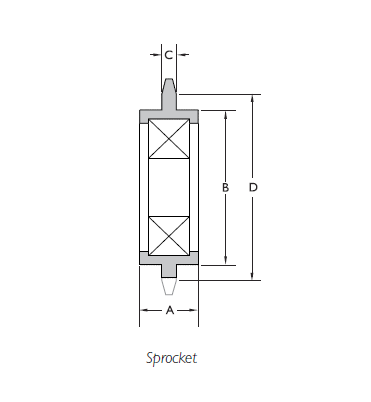

| Part Number | Chain # | # Teeth | Nominal O.D.(in) | Pitch Diameter (in) | A | B | C | Bearing Type | Bore Sizes |
|---|---|---|---|---|---|---|---|---|---|
| CS3502 | 35 | 19 | 2.48" | 2.28" | 0.67" | 1.78" | 0.164" | 6203-2RS | 17mm |
| CS4002 | 40 | 17 | 2.98" | 2.72" | 0.67" | 1.78" | 0.279" | 6203-2RS | 17mm |
| CS4003 | 40 | 17 | 2.98" | 2.72" | 0.67" | 1.78" | 0.279" | 6203-2RS-10 | 5/8" |
| CS4006 | 40 | 17 | 2.98" | 2.72" | 0.67" | 1.78" | 0.279" | 6203-2RS-12 | 3/4" |
| CS5002 | 50 | 15 | 3.34" | 3.01" | 0.67" | 1.78" | 0.343" | 6203-2RS | 17mm |
| CS5004 | 50 | 15 | 3.34" | 3.01" | 0.67" | 1.78" | 0.343" | 6203-2RS-10 | 5/8" |
| CS5005 | 50 | 15 | 3.34" | 3.01" | 0.67" | 1.78" | 0.343" | 6203-2RS-12 | 3/4" |
| CS6002 | 60 | 13 | 3.52" | 3.14" | 0.67" | 1.78" | 0.449" | 6203-2RS | 17mm |
| CS6003 | 60 | 13 | 3.52" | 3.14" | 0.67" | 1.78" | 0.449" | 6203-2RS-10 | 5/8" |
| CS6004 | 60 | 13 | 3.52" | 3.14" | 0.67" | 1.78" | 0.449" | 6203-2RS-12 | 3/4" |
| CS8002 | 80 | 12 | 4.39" | 3.86" | 0.67" | 1.78" | 0.58" | 6203-2RS | 17mm |
| CS8003 | 80 | 12 | 4.39" | 3.86" | 0.67" | 1.78" | 0.58" | 6203-2RS-10 | 5/8" |
| CS8004 | 80 | 12 | 4.39" | 3.86" | 0.67" | 1.78" | 0.58" | 6203-2RS-12 | 3/4" |
