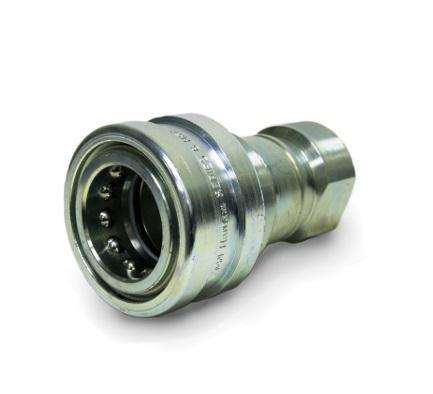

8HP36NV Hansen® by Danfoss | HK 1-8 Series | 1" Female NPTF x 1" ISO 7241-1 B Interchange Quick Disconnect | Female Socket No Valve | Standard Buna-N Seal | Steel

8HP36NV Hansen® by Danfoss | HK 1-8 Series | 1" Female NPTF x 1" ISO 7241-1 B Interchange Quick Disconnect | Female Socket No Valve | Standard Buna-N Seal | Steel

Sale price$75.62

Eaton HK 1-8 Series - ISO 7241-1 B Interchange - Sockets (Female) - Steel

 More payment options
Buy More, Save More!
Quantity Price Each
5–19 $71.08
20–59 $64.28
60+ $56.72
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Steel
Seal Material(s):
  • Buna-N/Nitrile Rubber
Product Features:
  • The coupling that sets the industry standard.
  • Self-sealing poppet valve design provides excellent high and low pressure sealing.
Applications & Markets:
  • Agriculture
  • Hydraulic Tool
  • General Industry
  • Construction
  • Fluid Transfer
  • Transportation
  • Military
  • Law Enforcement/Rescue
  • Chemical
  • Oil and Gas
  • Consumer Products
  • HVAC
  • Food and Beverage
  • Trucks
  • Aerospace
  • Medical
ISO Standard:
  • Meets dimensional requirements to ISO standard 7241-1 Series B.
Materials:
  • Standard body material: Zinc trivalent plated steel with stainless steel springs, balls and retaining rings.
  • Standard seal material: Nitrile (NBR) (Max. Operating Temp: 40°F to +250°F | -40°C to +121°C).
  • PTFE back up rings in sockets (females).
European Pressure Equipment Directive:
  • Couplings with nominal diameters up to and including 25 mm are designed and manufactured under Article 4.3 of the European Pressure Equipment Directive 2014/68/EU. Couplings with nominal diameters greater than 25 mm are designed and manufactured in accordance with stipulations of Module A of the European Pressure Equipment Directive 2014/68/EU. They should not be used to convey unstable gases.

Group 1 = Hazardous media / Group 2 = Other media

Series Body Size ISO Size Nominal Flow
Diameter		 Max. Operating
Pressure		 Rated
Flow*		 Air
Inclusion		 Fluid
Loss
Non Hazardous
Liquids & Gases
(Group 2)		 Hazardous
Liquids & Gases
(Group 1)
in. mm mm bar psi bar psi lpm gpm cc.max. cc.max.
1HK 1/8" 5mm 4.4mm 275 bar 4,000 psi 275 bar 4,000 psi 3 lpm 0.8 gpm 0.6 cc.max. 0.5 cc.max.
2HK 1/4" 6.3mm 5.9mm 345 bar 5,000 psi 345 bar 5,000 psi 12 lpm 3 gpm 1.2 cc.max. 0.9 cc.max.
3HK 3/8" 10mm 7.8mm 275 bar 4,000 psi 275 bar 4,000 psi 23 lpm 6 gpm 2.9 cc.max. 2.1 cc.max.
4HK 1/2" 12.5mm 10mm 345 bar 5,000 psi 345 bar 5,000 psi 45 lpm 12 gpm 3.6 cc.max. 3.5 cc.max.
6HK 3/4" 20mm 17mm 275 bar 4,000 psi 275 bar 4,000 psi 100 lpm 26 gpm 11.5 cc.max. 9.3 cc.max.
8HK 1" 25mm 19.6mm 275 bar 4,000 psi 275 bar 4,000 psi 189 lpm 50 gpm 18.0 cc.max. 16.9 cc.max.
10HK 1-1/4"** - 26.7mm 200 bar 2900 psi 37 bar 537 psi 288 lpm 76 gpm 48.0 cc.max. 48.0 cc.max.
12HK 1-1/2" 40mm 35.1mm 150 bar 2175 psi 29 bar 421 psi 375 lpm 99 gpm 91.3 cc.max. 91.3 cc.max.
20HK 2-1/2" 50mm 46mm 100 bar 1450 psi 21 bar 305 psi 757 lpm 200 gpm 209.9 cc.max. 209.9 cc.max.

For questions related to vacuum please contact Danfoss.
** No ISO Standard available for the 10HK
Socket/Female (Figure 1)
Plugs (Male) (Figure 2)
HK1-8 Series
Part Number Body Size ISO
Size		 Type Female
Thread		 Figure Dimensions
Buna-N Seal A B Across
Flats		 C D E Hex
1H11NV 1/8" 5mm Socket/Female 1/8-27 Fem. NPTF 1 1.91"
(48.5mm)		 0.98"
(24.9mm)		 0.56"
(14.2mm)		 - - - -
2H16NV 1/4" 6.3mm Socket/Female 1/4-18 Fem. NPTF 1 2.26"
(57.4mm)		 1.14"
(29.0mm)		 0.75"
(19.1mm)		 - - - -
2K16NV 1/4" 6.3mm Plug/Male 1/4-18 Fem. NPTF 2 - - - 1.52"
(38.6mm)		 0.87"
(22.1mm)		 0.56"
(14.2mm)		 0.75"
(19.1mm)
3H21NV 3/8" 10mm Socket/Female 3/8-18 Fem. NPTF 1 2.56"
(65.0mm)		 1.42"
(36.1mm)		 0.88"
(22.4mm)		 - - - -
3K21NV 3/8" 10mm Plug/Male 3/8-18 Fem. NPTF 2 - - - 1.76"
(44.7mm)		 1.01"
(25.7mm)		 0.61"
(15.5mm)		 0.88"
(22.4mm)
4HP26NV 1/2" 12.5mm Socket/Female 1/2-14 Fem. NPTF 1 2.96"
(75.2mm)		 1.86"
(47.2mm)		 1.13"
(28.7mm)		 - - - -
4KP26NV 1/2" 12.5mm Plug/Male 1/2-14 Fem. BSPP 2 - - - 2.03"
(51.6mm)		 1.30"
(33.0mm)		 0.76"
(19.3mm)		 1.13"
(28.7mm)
6HP31NV 3/4" 20mm Socket/Female 3/4-14 Fem. NPTF 1 3.48"
(88.4mm)		 2.22"
(56.4mm)		 1.31"
(33.3mm)		 - - - -
8KP36NV 1" 25mm Plug/Male 1-11-1/2 Fem. NPTF 2 - - - 2.85"
(72.4mm)		 1.88"
(47.8mm)		 0.97"
(24.6mm)		 1.63"
(41.4mm)
8HP16NV 1" 25mm Socket/Female 1-5/16-12 Fem. SAE ORB 1 4.13"
(104.9mm)		 2.61"
(66.3mm)		 1.88"
(47.8mm)		 - - - -
8HP36NV 1" 25mm Socket/Female 1-11-1/2 Fem. NPTF 1 4.13"
(104.9mm)		 2.61"
(66.3mm)		 1.75"
(44.5mm)		 - - - -
HK10/12/20 Series
Socket/Female (Figure 3)
Part Number Body
Size		 ISO
Size		 Type Female
Thread		 Figure Dimensions
Buna-N Seal A B Hex C D E Hex
20H61NV 2-1/2" 50mm Socket/Female 3-8 Fem. NPTF 3 7.00"
(177.8mm)		 4.11"
(104.4mm)		 4.00"
(101.6mm)		 - - - -

A=Overall Length, B=Maximum Diameter
* ISO 7241-1 Series B does not include 1-1/4 inch body size couplings; therefore, Series 10HK is not covered by this standard.
To obtain connected length of coupling, add dimensions A (Fig. 1) and E (Fig. 2) together.
To obtain connected length of coupling, add dimensions A (Fig. 3) and E (Fig. 4) together.
