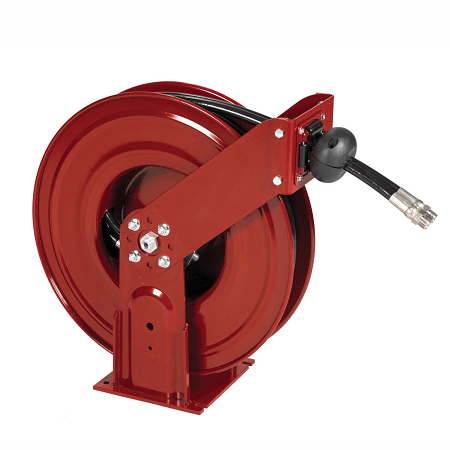

8081-G Alemite Narrow Double Post Reels - Air/Water - Reel Inlet, 1/2" NPSM(m) - Delivery Hose Outlet, 1/4" NPTF(m) - Delivery Hose specification, 1/2" x 50' (317811-50) - Max Pressure, 300 PSI

by Alemite
$598.69
SKU 8081-G Alemite

PRODUCT DESCRIPTION

Alemite Narrow Double Post Reels - Air/Water

Applications,
  • Alemite Narrow Double Post Reels provide the rugged, reliable performance of an Alemite Reel, with a narrower design to fully optimize space efficiency. The dual arm design provides increased strength and stability in demanding off road applications.
Features,
  • Narrow Design - 8.5" wide, for better space utilization.
  • Superior Performance - Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time.
  • Anti-Lockout Design - Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.
  • Corrosion Resistant - Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments.
  • Easy Installation and Maintenance - Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy.
  • Durable - Heavy metal arbor and dual arm design withstand extreme stress and eliminate breakage associated with non-metal and light weight metal arbors.
  • Adjustable and Versatile - 5 position guide arm allows hose to release at an optimum position. Narrow design allows for efficient use of available space.
  • Compatibility - Grease, grease, air, water, fuel, hydraulic fluid
  • INCLUDED ITEMS,
  • Hose Reel, Hose, Hose Stop, Union & Connecting Hose

Dimensions,

Part Number Bare Reel Max Pressure Delivery Hose
Specification
Reel Inlet Delivery Hose Outlet Weight
8081-E 7372 300 PSI 3/8" x 40' (317803-40) 1/2" NPSM(m) 1/4" NPTF(m) 62 Lb.
8081-F 7372 300 PSI 3/8" x 50' (317803-50) 1/2" NPSM(m) 1/4" NPTF(m) 64 Lb.
8081-G 7371 300 PSI 1/2" x 50' (317811-50) 1/2" NPSM(m) 1/2" NPTF(m) 68.6 Lb.
7372 7372 300 PSI NA 1/2" NPSM(m) NA 55 Lb.
