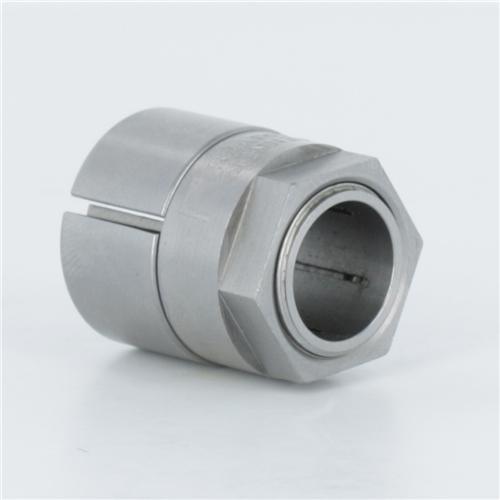

6410044 by Fenner Drives | Trantorque Mini | 7/16" | Steel

Overview:
The Trantorque Mini Series 7/16" Keyless Bushing provides a high capacity, zero-backlash shaft/hub or coupling connection of mounted components to shafts measuring 7/16" in diameter by means of a mounted mechanical interference fit and transmits up to 669 inch lbs of torque.
Description:
Trantorque Mini Series 7/16" Keyless Bushings provide a zero-backlash frictional connection that will never wear or pound out and can accommodate high-torque, thrust, bending, and/or radial loads. This product has exceptional concentricity and the ability to accommodate bending loads. The Trantorque Mini Series has limited axial movement during installation. All Trantorque units use a single hex nut for speed and simplicity of installation. Best Suited For: Small shaft applications where speed and simplicity of installation and repositioning are critical. Exceptional concentricity and ability to accommodate bending loads Limited axial movement during installation All Trantorque units use a single hex nut for speed and simplicity of installation Features of Fenner Drives Keyless Bushings: Ability to transmit higher torques than keyed connections True zero-backlash Less equipment downtime Ability to mount over existing keyways Complete axial and radial adjustability Simple installation, adjustment and removal All Fenner Drives keyless locking devices operate using the simple wedge principle. An axial force is applied- by either a hex nut (Trantorque) or a series of annular screws (B-LOC)- to engage circular steel rings with mating tapers. The resulting wedge action creates a radial force on the tapered rings, one of which contracts to squeeze the shaft while the other expands and presses into the component bore.

SPECIFICATIONS

Series:	Trantorque Mini	Torque Transmission:	669 in lb
Axial Movement:	Approximately 0.045"	Compliancy:	RoHS
Component Bore Diameter:	7/8"	Hub Pressure:	18535 psi
Installation Torque:	390 in lb	Internal/ External:	Internal
Material:	Steel	Metric/Inch:	Inch
Releasing/ Locking:	Locking	Self-Centering:	Yes
Shaft Diameter:	7/16"	Taper:	Single
Thrust:	3057 lbf

Part Number	d	D	L	L1	Wrench Size	B	Ma	Mt * Max. Transmitted	Th Max. Transmitted	Ph
Steel	(inch)	(inch)	(inch)	(inch)	A (inch)	(inch)	Install Torque (in lb)	Torque (in lb)	Thrust (lbs)	Hub Pressure (psi)
6410013	1/8"	5/8"	3/8"	3/4"	1/2"	1/8"	125lbs	91 lb	1459 lbs	16513 psi
6410019	3/16"	5/8"	3/8"	3/4"	1/2"	1/8"	125lbs	137 lb	1459 lbs	16513 psi
6410025	1/4"	5/8"	3/8"	3/4"	1/2"	1/8"	125lbs	182 lb	1459 lbs	16513 psi
6410031	5/16"	3/4"	7/16"	7/8"	5/8"	1/8"	250lbs	366 lb	2345 lbs	18960 psi
6410038	3/8"	3/4"	7/16"	7/8"	5/8"	1/8"	250lbs	440lb	2345 lbs	18960 psi
6410044	7/16"	7/8"	1/2"	1"	3/4"	3/16"	390lbs	669 lb	3057 lbs	18535 psi
6410050	1/2"	7/8"	1/2"	1"	3/4"	3/16"	390lbs	764 lb	3057 lbs	18535 psi
6410056	9/16"	1"	5/8"	1-1/8"	7/8"	3/16"	585lbs	1110 lb	3948 lbs	16754 psi
6410063	5/8"	1"	5/8"	1-1/8"	7/8"	3/16"	585lbs	1234 lb	3948 lbs	16754 psi

NOTE: The data in the M_t Th and P_h is for a steel unit. To obtain data for other materials, use the multiplier provided below.

Multipliers:
Steel - 1.0
Electroless Nickel Plated Steel - 0.8
Thin Dense Chrome Coated Steel - 1.0
Stainless Steel - 0.35
*When installing Trantorque Mini with an open-ended wrench, a reduction in installation torque by 50% is recommended. This will result in a Transmitted Torque (Mt) reduced by 50%.
