5218018 by Fenner Drives | Eagle Hyfen 85 Round Belting | 3/8" x 9.5mm Diameter | Reinforced | Green, Blue | 100ft

5218018 by Fenner Drives | Eagle Hyfen 85 Round Belting | 3/8" x 9.5mm Diameter | Reinforced | Green, Blue | 100ft

Sale price$1,050.41
Quantity Price Each
8–14 $966.38
15+ $892.85
Discounts applied at checkout.
Fenner Drives - Conveying - Round Belting - 9mm, 9.5mm, 3/8" Round Cross Sections - Reinforced

Package Quantity: 100 FT

 More payment options

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:

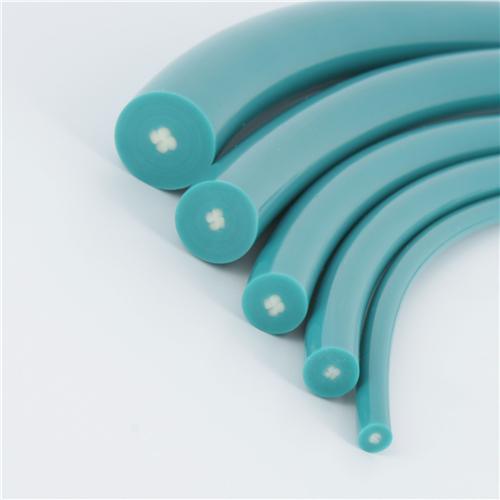

  • Eagle Hyfen 85 Reinforced Belting is the ideal high-strength, low-stretch choice with an 85 Shore A durometer and a polyester reinforcing tensile member. Packaged in 100'/30.5m lengths.
Description:
  • Fenner Drives Eagle Hyfen 85 Reinforced Belts are made of an 85 Shore A durometer polyurethane belting with a polyester reinforcing tensile member making this product an ideal high-strength, low-stretch choice for longer conveyor lengths, heavier load, or medium-duty power transmission applications.

    Best Suited For: Longer conveyor lengths, heavier conveyed loads, or medium-duty power transmission applications.

  • 85 Shore A durometer polyurethane belting
  • High strength, low-stretch
  • REACH and RoHS 2002/95/EC Directive Compliant
  • Independently tested and verified to meet FDA standards for direct food contact


    • Eagle Hyfen 85 Reinforced Belts offer all the dependable features of Fenner Drives Original Orange Reinforced Belt plus the added benefit of more strength due to the stronger reinforcing tensile member!

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Hyfen 85 Reinforced Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Hyfen 85 Specialty Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Round Profile Size: 1/2", 1/4", 3/16", 3/4", 3/8", 5/16", 5/8", 9/16"
Reinforcement: Polyester Tape Color: Blue, Green
Compliancy: FDA, RoHS Durometer: 85A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
5218018 Eagle Hyfen 85 3/8" 9.5mm 4.13" 105mm 7.3 32.5 26.2 116.5 43.5 193.5 57.4 255.3 0.057 lbs 0.086 kg
4816018 Natural 55D Can Cable 3/8" 9.5mm 12" 305mm 18.1 80.4 42.9 190.6 79.4 353.1 118.4 526.5 0.057 lbs 0.086 kg
4899006 Natural 63D Can Cable 3/8" 9.5mm 12" 305mm 18.1 80.4 42.9 190.6 79.4 353.1 118.4 526.5 0.057 lbs 0.087 kg
4816020 Red 50D LCF Can Cable 3/8" 9.5mm 10" 254mm 23.8 105.9 57.8 257.2 104.3 463.8 152.3 677.2 0.058 lbs 0.087 kg
4817018 Green 63D Can Cable 3/8" 9.5mm 12" 305mm 18.1 80.4 42.9 190.6 79.4 353.1 118.4 526.5 0.058 lbs 0.087 kg
4899012 Blue 55D Aramid Can Cable 3/8" 9.5mm 12" 305mm 41.7 185.5 149.1 663.2 281.1 1250.4 --- --- 0.057 lbs 0.086 kg

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.
