4934009 by Fenner Drives | Eagle 85 QC Round Belting | .188" x .080" Diameter | Non-Reinforced | Clear | 100ft

4934009 by Fenner Drives | Eagle 85 QC Round Belting | .188" x .080" Diameter | Non-Reinforced | Clear | 100ft

Sale price$192.63
Quantity Price Each
30–59 $173.37
60+ $154.10
Discounts applied at checkout.
Fenner Drives - Conveying - Round Belting - 4mm, 5mm, 3/16" Round Cross Sections - Non-Reinforced

Package Quantity: 100 FT

 More payment options

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:

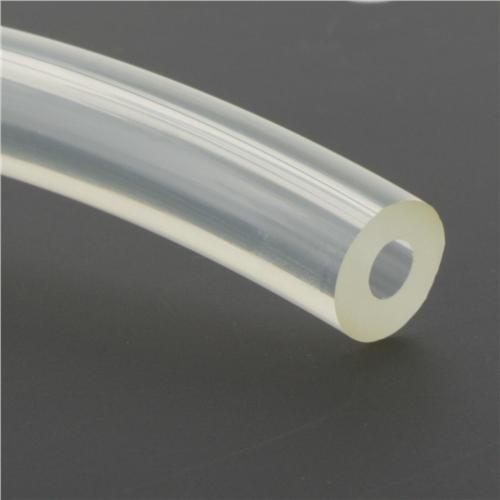

  • Eagle Clear 85 Quick Connect (QC) has a round, hollow construction with 85 Shore A durometer that can quickly and easily be joined with metal connectors (included) so that there is no welding required. Packaged in 100'/30.5m lengths.
Description:
  • A round, hollow connectable polyurethane belting, Eagle Clear 85 QC is the ideal quick fix on packaging and conveying lines where minimal downtime is desired. All Eagle QC belting can be installed without dismantling drive shafts and is easily made endless using a barbed connector.

    Best Suited For: Light duty conveying or motion transfer applications where it is undesirable or impractical to weld the belt.

  • 4Easy installation without dismantling drive shafts
  • No welding required
  • Easily made endless with Fenner Drives Quick Connectors


    • Eagle Clear 85 QC is manufactured from a clear 85 Shore A durometer polyurethane belting that provides excellent abrasion resistance, high elasticity, and is also self-tensioning.

  • 85 Shore A durometer
  • Highly elastic
  • REACH and RoHS 2002/95/EC Directive compliant

SPECIFICATIONS

Profile Shape: N/A Profile Size: 1/2", 1/4", 3/16", 3/8", 5/16", 5/8"
Reinforcement: None Color: Clear
Compliancy: FDA, REACH, RoHS Durometer: 85A
Material: Polyurethane Special Feature: Hollow Round

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4928002 Eagle Blue 80 EC --- 4mm 1.1" 28mm 0.6 2.8 0.9 4.2 1.3 5.6 1.5 6.7 0.009 lbs 0.014 kg
4927002 Eagle Clear 80 EC --- 4mm 1.1" 28mm 0.6 2.8 0.9 4.2 1.3 5.6 1.5 6.7 0.009 lbs 0.014 kg
L04OP804 Eagle Opaque 80 --- 4mm 1.1" 28mm 0.8 3.7 1.4 6.2 2 8.7 2.5 11 0.01 lbs 0.015 kg
L04OG854 Eagle Orange 85 --- 4mm 1.26" 32mm 0.8 3.4 1.2 5.3 1.6 7 1.9 8.6 0.01 lbs 0.015 kg
L04C854 Eagle Clear 85 --- 4mm 1.26" 32mm 0.8 3.4 1.2 5.3 1.6 7 1.9 8.6 0.01 lbs 0.015 kg
L04R8504 Eagle Red 85 --- 4mm 1.26" 32mm 0.8 3.4 1.2 5.3 1.6 7 2 8.7 0.01 lbs 0.015 kg
L04BL854 Eagle Blue 85 --- 4mm 1.26" 32mm 0.8 3.4 1.2 5.3 1.6 7 2 8.7 0.01 lbs 0.015 kg
4905404 Eagle Green 89 --- 4mm 1.42" 36mm 1.3 5.7 2.1 9.3 2.9 12.8 3.6 16 0.01 lbs 0.015 kg
4905304 Eagle Green 89 Textured --- 4mm 1.42" 36mm 0.9 4.1 1.5 6.8 2.1 9.3 2.6 11.6 0.01 lbs 0.015 kg
4940021 Eagle Red 90 --- 4mm 1.57" 40mm 4.2 18.6 6 26.8 7.6 33.8 8.9 39.5 0.01 lbs 0.015 kg
4941100 Eagle Blue 80 MD 3/16" --- 1.31" 33mm 0.8 3.5 1.2 5.4 1.6 7 1.9 8.6 0.013 lbs 0.02 kg
1032006 Eagle Orange 85 3/16" --- 1.5" 38mm 1.1 4.9 1.7 7.5 2.2 10 2.8 12.3 0.014 lbs 0.021 kg
4908009 Eagle Clear 85 3/16" --- 1.5" 38mm 1.1 4.9 1.7 7.5 2.2 10 2.8 12.3 0.014 lbs 0.021 kg
4940022 Eagle Red 90 3/16" --- 1.88" 48mm 6 26.5 8.6 38.2 10.8 48.1 12.6 56.2 0.014 lbs 0.022 kg
4907009 Eagle Clear 95 3/16" --- 1.88" 48mm 2 9.1 3 13.5 3.9 17.3 4.6 20.6 0.015 lbs 0.022 kg
4934009 Eagle Clear 85 QC .188" x .080" --- 1.5" 38mm 0.5 2 0.7 3.1 0.9 4.2 1.2 5.2 0.012 lbs 0.018 kg
4934021 Eagle Yellow 85 QC .188" x .080"* --- 1.5" 38mm 0.5 2 0.7 3.1 0.9 4.2 1.2 5.2 0.012 lbs 0.018 kg
4928003 Eagle Blue 80 EC --- 5mm 1.38" 35mm 0.9 4.2 1.4 6.3 1.9 8.4 2.4 10.6 0.015 lbs 0.022 kg
4927003 Eagle Clear 80 EC --- 5mm 1.38" 35mm 0.9 4.2 1.4 6.3 1.9 8.4 2.4 10.6 0.015 lbs 0.022 kg
L04OP805M Eagle Opaque 80 --- 5mm 1.38" 35mm 1.3 5.7 2.2 9.7 3.1 13.6 3.9 17.2 0.016 lbs 0.024 kg
4940100 Eagle Orange 85 --- 5mm 1.57" 40mm 1.2 5.4 1.9 8.3 2.5 11 3.1 13.6 0.016 lbs 0.024 kg
L04C855M Eagle Clear 85 --- 5mm 1.57" 40mm 1.2 5.3 1.9 8.3 2.5 11 3 13.5 0.016 lbs 0.024 kg
L04R855 Eagle Red 85 --- 5mm 1.57" 40mm 1.2 5.3 1.9 8.3 2.5 11 3 13.5 0.016 lbs 0.024 kg
L04BL855M Eagle Blue 85 --- 5mm 1.57" 40mm 1.2 5.3 1.9 8.3 2.5 11 3 13.5 0.016 lbs 0.024 kg
4905405 Eagle Green 89 --- 5mm 1.77" 45mm 2 8.9 3.3 14.6 4.5 20.1 5.6 25.1 0.016 lbs 0.023 kg
4905305 Eagle Green 89 Textured --- 5mm 1.77" 45mm 1.5 6.5 2.4 10.6 3.3 14.6 4.1 18.2 0.016 lbs 0.023 kg
L04R9005M Eagle Red 90 --- 5mm 1.97" 50mm 6 26.5 8.6 38.2 10.8 48.1 12.6 56.2 0.014 lbs 0.022 kg
L04BE955M Eagle Beige 95 --- 5mm 1.97" 50mm 5.3 23.6 7.5 33.4 9.4 41.8 11 48.8 0.016 lbs 0.024 kg
L04QC855M Eagle Clear 85 QC --- 5mm x 2mm* 1.57" 40mm 0.5 2.3 0.8 3.5 1.1 4.7 1.3 5.8 0.013 lbs 0.02 kg
L04QR855M Eagle Red 85 QC --- 5mm x 2mm* 1.57" 40mm 0.5 2.3 0.8 3.5 1.1 4.7 1.3 5.8 0.013 lbs 0.02 kg
4935009 QC Connectors 25/pack N/A N/A
