4/3VX355 Wedge 4- Banded Cogged Cut Edge V- Belt - 4/3VX - 35.5" O. C.

Original price $52.56
Original price $52.56 - Original price $52.56
Original price $52.56
Current price $47.30
$47.30 - $47.30
Current price $47.30
SKU 4/3VX355 Bestorq
Can I get a discount on my purchase?

Our prices listed are our lowest possible price with current costing but when volumes/value are high enough sometimes we can get a discount from the manufacturer to pass on to you. If you feel your purchase size of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.


Murdock may hold inventory for this product from other manufacturers purchased before we started transitioning to a Bestorq only product offering. We may fill your order with the same product number supplied by a different manufacturer (ie. Thermoid or DnD Global). We will ensure that there is only one vendor per line item on your order.
PRODUCT DESCRIPTION

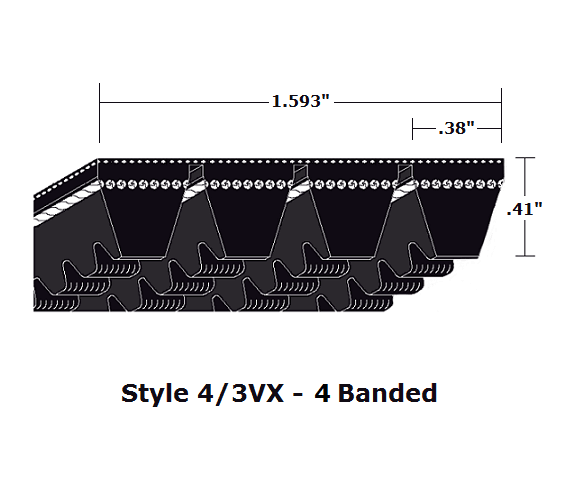

Banded Cogged Wedge Cut Edge Belts - 4/3VX Style V-Belts - 4-Banded



Overview:
  • Banded, cut edge, cogged, V-belts give premium belt performance, just as do their single belt counterparts. The belts are constructed of the same highly engineered, high performance components as single, cogged, cut edge belts. The components are manufactured using the latest in belt technology available on a global basis. The "X" in the part number refers to higher load ratings than standard wrapped belts.
  • The joined or banded belts are recommended for high shock load and pulsating drives where extra stability is beneficial.
Features:
  • The lower, compression section of the belt is made of highly fiber reinforced, oil and heat resistant, engineered synthetic rubber compound, specifically compounded for excellent wear resistance, cool running, flexibility and has been proven through thousands of hours of testing. The rubber directly surrounding the tensile member cables is also fiber reinforced and compounded for great adhesion to the tensile member cords. The top fabric is a specially woven, synthetic-natural fiber blend. The notches are engineered to allow the belts to have superior flex characteristics on smaller and larger diameter pulleys.
  • The helically wound tensile cords are specially engineered, twisted, heat and chemically set, polyester material. Testing has proven that the tensile decay properties of the cord are truly World Class.
  • The belts exceed USA RMA published ratings levels. They are designed to perform at the identical or higher level than all other major USA Manufacturer's belts of the same type.
  • The Tie-Band backing joins the individual belts. It is made out of especially heavy duty, woven fabric encapsulated in a tough rubber case to give excellent flexibility around the pulleys. In the transverse direction it offers an extremely strong tie band across the top of the belts, and very importantly the tie band has superb adhesion to each individual belts.
Specifications:
  • The belts meet USA RMA published ratings levels. All 3VX, 5VX, BX, and CX banded belts are manufactured to meet RMA standards for length and dimensions. All belts of a given size are manufactured to run interchangeably in a matched set, if more ribs are needed than available in one band unit.
Optimizing Your Belt Drive Efficiency:

Part Number Top Band Width
(in.)
Top Width Total
(in.)
Thickness
(in.)
Spacing
(in.)
Angle Bands Outside Circumference (O.C.)
(in.)
4/3VX300 .38" 1.593" .41" .41" 40 4 30"
4/3VX315 .38" 1.593" .41" .41" 40 4 31.5"
4/3VX335 .38" 1.593" .41" .41" 40 4 33.5"
4/3VX340 .38" 1.593" .41" .41" 40 4 34"
4/3VX355 .38" 1.593" .41" .41" 40 4 35.5"
4/3VX360 .38" 1.593" .41" .41" 40 4 36"
4/3VX375 .38" 1.593" .41" .41" 40 4 37.5"
4/3VX400 .38" 1.593" .41" .41" 40 4 40"
4/3VX415 .38" 1.593" .41" .41" 40 4 41.5"
4/3VX425 .38" 1.593" .41" .41" 40 4 42.5"
4/3VX430 .38" 1.593" .41" .41" 40 4 43"
4/3VX450 .38" 1.593" .41" .41" 40 4 45"
4/3VX465 .38" 1.593" .41" .41" 40 4 46.5"
4/3VX475 .38" 1.593" .41" .41" 40 4 47.5"
4/3VX500 .38" 1.593" .41" .41" 40 4 50"
4/3VX520 .38" 1.593" .41" .41" 40 4 52"
4/3VX530 .38" 1.593" .41" .41" 40 4 53"
4/3VX560 .38" 1.593" .41" .41" 40 4 56"
4/3VX600 .38" 1.593" .41" .41" 40 4 60"
4/3VX630 .38" 1.593" .41" .41" 40 4 63"
4/3VX670 .38" 1.593" .41" .41" 40 4 67"
4/3VX710 .38" 1.593" .41" .41" 40 4 71"
4/3VX750 .38" 1.593" .41" .41" 40 4 75"
4/3VX800 .38" 1.593" .41" .41" 40 4 80"
4/3VX820 .38" 1.593" .41" .41" 40 4 82"
4/3VX850 .38" 1.593" .41" .41" 40 4 85"
4/3VX900 .38" 1.593" .41" .41" 40 4 90"
4/3VX950 .38" 1.593" .41" .41" 40 4 95"
4/3VX1000 .38" 1.593" .41" .41" 40 4 100"
4/3VX1060 .38" 1.593" .41" .41" 40 4 106"
4/3VX1120 .38" 1.593" .41" .41" 40 4 112"
4/3VX1180 .38" 1.593" .41" .41" 40 4 118"
4/3VX1250 .38" 1.593" .41" .41" 40 4 125"
4/3VX1320 .38" 1.593" .41" .41" 40 4 132"
4/3VX1400 .38" 1.593" .41" .41" 40 4 140"
4/3VX1500 .38" 1.593" .41" .41" 40 4 150"
