2583-16 Aeroquip by Danfoss | Double Textile Braided Hose | SAE 100R3 | 1.00" ID
Aeroquip® by Danfoss

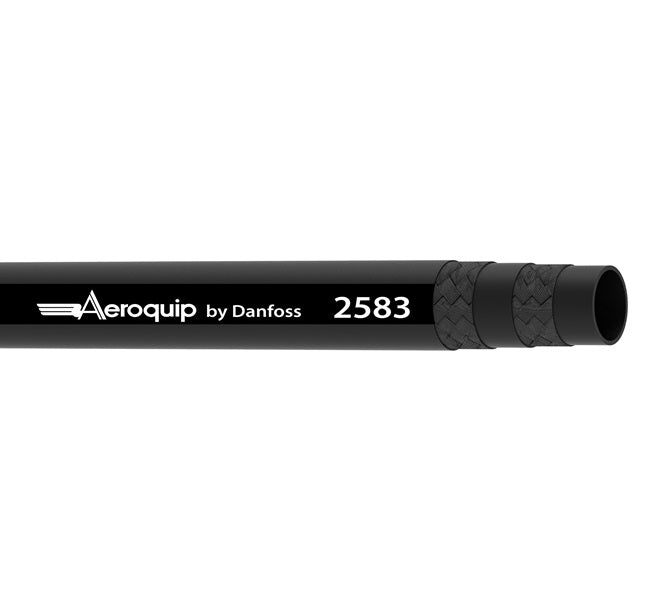

2583 Series | Douple Textile Braid General Purpose Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Product Data:
565
| Hose Properties: | |||
|---|---|---|---|
| Application: | For hydraulics, fuel, lubricating oils, gasoline, air and water. Not approved for air brake applications. |
SAE Rating: | Meets: SAE 100R3, EN 854 Type R3 |
| Other Ratings: | N/A | Tube: | Synthetic Rubber |
| Reinforcement: | Double Textile Braid | Cover: | Synthetic Rubber |
| Temperature Range: | -40°F to +212°F (-40°C to +100°C) Air not to exceed: +161°F (+71°C) |
||
| Part Number | Hose ID | Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| 2583-4 | 6 | 6,4mm | 0.25" | 14,5mm | 0.57" | 87,0 bar | 1250 psi | 350,0 bar | 5000 psi | 76,2mm | 3.00" | 0,18 kg/m | 0.12 lbs/ft |
| 2583-6 | 10 | 9,7mm | 0.38" | 19,1mm | 0.75" | 78,0 bar | 1125 psi | 315,0 bar | 4500 psi | 101,6mm | 4.00" | 0,33 kg/m | 0.22 lbs/ft |
| 2583-8 | 13 | 12,7mm | 0.50" | 23,9mm | 0.94" | 70,0 bar | 1000 psi | 280,0 bar | 4000 psi | 127,0mm | 5.00" | 0,39 kg/m | 0.26 lbs/ft |
| 2583-12 | 19 | 19,1mm | 0.75" | 31,8mm | 1.25" | 52,0 bar | 750 psi | 210,0 bar | 3000 psi | 152,4mm | 6.00" | 0,71 kg/m | 0.48 lbs/ft |
| 2583-16 | 25 | 25,4mm | 1.00" | 38,1mm | 1.50" | 39,0 bar | 565 psi | 157,0 bar | 2250 psi | 203,2mm | 8.00" | 0,76 kg/m | 0.51 lbs/ft |
| 2583-20 | 32 | 31,8mm | 1.25" | 44,5mm | 1.75" | 26,0 bar | 375 psi | 105,0 bar | 1500 psi | 254,0mm | 10.00" | 1,09 kg/m | 0.73 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
