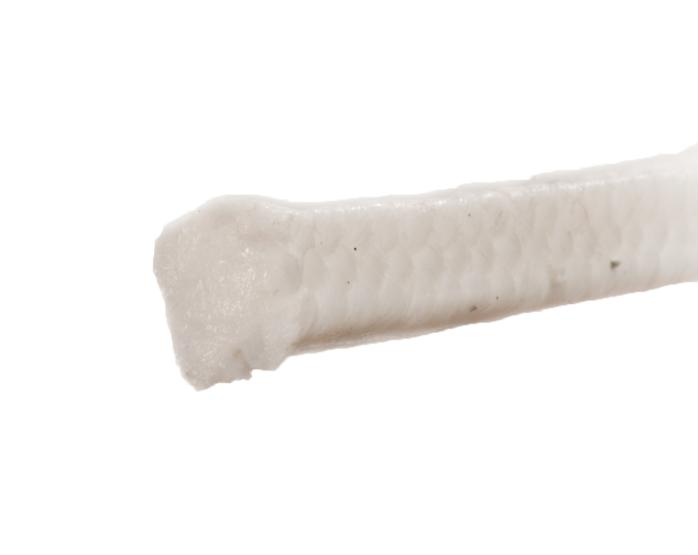

41891-3048 by Garlock | Style 5889 PTFE Packing | 0.750in | 10lb Spool
Garlock

41891-3048 by Garlock | Style 5889 PTFE Packing | 0.750in | 10lb Spool

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:
  • Style 5889 is treated with PTFE dispersion and an inert ingredient for high speed rotary shaft service in marine, wastewater treatment, and other volatile applications. Excellent chemical resistance.
  • A continuous filament PTFE fiber, Style 5889 is a dimensionally stable, yet relatively soft and flexible packing. Treated with PTFE dispersion and an inert ingredient, it's an excellent choice for high-speed rotary shaft service. Pre-shrunk to avoid packing wear and shaft scoring, Style 5889 is also very non-porous. Of LATTICE BRAID construction, it's used in expansion joints, reciprocating rods, rams and plungers and rotary application. NOT RECOMMENDED FOR CHLORINE SERVICE.
Features & Benefits:
  • Chemically resistant for pumps and rotary equipment
  • Preshrunk to avoid packing wear and shaft scoring
  • Soft, flexible but very nonporous
  • Excellent choice for rotary shaft service
Specifications:
  • Material Classification: PTFE filament
  • Lubrication: PTFE dispersion & silicone
  • Construction: LATTICE BRAID®
  • Rotary: Yes
  • Service Recip: No
  • Valve: No
  • Temperature: -450 Deg. F (-270 Deg. C) to +500 Deg. F (+260 Deg. C)
  • Pressure: to 300 psi (20 bar) (rotary/centrifugal)
  • Shaft Speed: to 1500 fpm plus (8 m/s)
  • pH: 0-14 (Should not be used in chlorine)
Applications:
  • Sump pumps
  • Chlorinators
  • Alkaline softeners
  • Slip-type expansion joints
  • Strong acid situations
  • Coke plant hot oil pumps
  • Reciprocating rods, rams, and plungers
  • Not recommended for chlorine service.

Order Code
(Part Number)		 Style Size
(in.)		 Package Size Length per Spool
41891-1008 5889 .125" 1 lb. Spool 69.0 ft
41891-2008 5889 .125" 5 lb. Spool 69.0 ft
41891-1012 5889 .188" 1 lb. Spool 38.3 ft
41891-1016 5889 .250" 1 lb. Spool 20.1 ft
41891-2016 5889 .250" 5 lb. Spool 20.1 ft
41891-1020 5889 .313" 1 lb. Spool 12.0 ft
41891-2020 5889 .313" 5 lb. Spool 12.0 ft
41891-1024 5889 .375" 1 lb. Spool 9.1 ft
41891-2024 5889 .375" 5 lb. Spool 9.1 ft
41891-3024 5889 .375" 10 lb. Spool 9.1 ft
41891-2028 5889 .438" 5 lb. Spool 6.7 ft
41891-3028 5889 .438" 10 lb. Spool 6.7 ft
41891-2032 5889 .500" 5 lb. Spool 5.4 ft
41891-3032 5889 .500" 10 lb. Spool 5.4 ft
41891-2036 5889 .563" 5 lb. Spool 4.2 ft
41891-3036 5889 .563" 10 lb. Spool 4.2 ft
41891-2040 5889 .625" 5 lb. Spool 3.5 ft
41891-3040 5889 .625" 10 lb. Spool 3.5 ft
41891-3044 5889 .688" 10 lb. Spool 2.9 ft
41891-2048 5889 .750" 5 lb. Spool 2.4 ft
41891-3048 5889 .750" 10 lb. Spool 2.4 ft
41891-3056 5889 .875" 10 lb. Spool 1.9 ft
41891-3064 5889 1.000" 10 lb. Spool 1.3 ft
