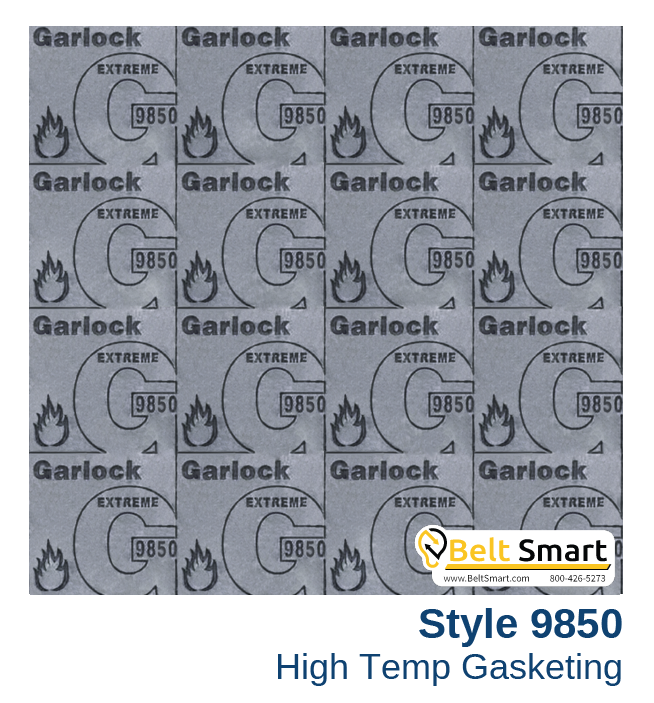

Garlock Gaskets - Style 9850 - High Temp Compressed Graphite Gasketing
Benefits: | |||
---|---|---|---|
|
|||
Tighter Seal: | |||
|
|||
Convenient: | |||
|
|||
Media: | |||
|
Typical Physical Properties
99004 | 98004 | 98504 | ||
---|---|---|---|---|
Color | Mahogany | Black | Black | |
Composition | Graphite with nitrile | Carbon with SBR | Carbon with nitrile | |
Temperature1 | Maximum Minimum Continuous Max. |
1,000°F (540°C) -100°F (-75°C) 650°F (340°C) |
900°F (480°C) -100°F (-75°C) 650°F (340°C) |
900°F (480°C) -100°F (-75°C) 650°F (340°C) |
Pressure1 Continuous Max. |
psig (bar) | 2,000 (138) | 2,000 (138) | 2,000 (138) |
P x T, max. (psig x °F) (bar x °C) |
1/32", 1/16" (0.8mm, 1.6mm) 1/8" (3.2mm) |
700,000 (25,000) 350,000 (12,000) |
700,000 (25,000) 350,000 (12,000) |
700,000 (25,000) 350,000 (12,000) |
Sealability (ASTM F37B)2 ASTM Fuel A Nitrogen |
ml/hr ml/hr |
0.3 0.6 |
0.3 0.6 |
0.3 0.6 |
Creep Relaxation (ASTM F38)(1/32") | % | 9 | 15 | 15 |
Compressibility Average (ASTM F36) | % | 9 | 8 | 8 |
Recovery (ASTM F36) | % | >55 | >55 | >55 |
Tensile Strength across grain (ASTM F152) |
psi (N/mm2) |
1,800 (12) |
1,800 (10) |
1,800 (12) |
Density | lbs/ft3 (g/cm3) | 110 (1.76) | 105 (1.68) | 105 (1.68) |
Gas Permeability (DIN 3535 Part 4)3 |
cc/min. |
0.015 |
0.015 |
0.015 |
Order Code (Part Number) |
Style | Thickness (in.) |
Width (in.) |
Length (in.) |
---|---|---|---|---|
39985-2438 | 9850 | 0.016" | 60" | 60" |
39985-2440 | 9850 | 0.016" | 60" | 120" |
39985-2801 | 9850 | 0.016" | 60" | 180" |
39985-2480 | 9850 | 0.031" | 60" | 60" |
39985-2482 | 9850 | 0.031" | 60" | 120" |
39985-2802 | 9850 | 0.031" | 60" | 180" |
39985-2501 | 9850 | 0.047" | 60" | 60" |
39985-2503 | 9850 | 0.047" | 60" | 120" |
39985-2803 | 9850 | 0.047" | 60" | 180" |
39985-2521 | 9850 | 0.063" | 60" | 60" |
39985-2523 | 9850 | 0.063" | 60" | 120" |
39985-2804 | 9850 | 0.063" | 60" | 180" |
39985-2563 | 9850 | 0.094" | 60" | 60" |
39985-2565 | 9850 | 0.094" | 60" | 120" |
39985-2806 | 9850 | 0.094" | 60" | 180" |
39985-2605 | 9850 | 0.125" | 60" | 60" |
39985-2607 | 9850 | 0.125" | 60" | 120" |
39985-2808 | 9850 | 0.125" | 60" | 180" |
This is a general guide and should not be the sole means of selecting or rejecting this material. ASTM test results in accordance with ASTM F-104; properties based on 1/16" (1.6mm) sheet thickness.
* Values do not constitute specification limits All styles are furnished with an anti-stick parting agent as standard.
NOTES:
† For steam service above 150 psig, contact Engineering Refer to "Military Specifications" section under "Gasketing Terms" for order/ inquiry requirements. To ensure receipt of product with the required STR 508 approvals, certification will be required; associated fees based on quantity.
1 Based on ANSI RF flanges at our preferred torque. When approaching maximum pressure, continuous operating temperature, minimum temperature or 50% of maximum PxT, consult Garlock Engineering.
2 ASTM F37B Sealability
ASTM Fuel A (isooctane):
- Gasket load = 500 psi (3.5 N/mm2), Int. pressure = 9.8 psig (0.7 bar)
Nitrogen:
- Gasket load = 3,000 psi (20.7 N/mm2), Int. pressure = 30 psig (2 bar)
3 DIN 3535 Part 4 Gas Permeability, cc/min. (1/16" thick)
Nitrogen:
- Gasket load = 4,640 psi (32 N/mm2), Int. pressure = 580 psig (40 bar)
4 Saturated steam service guidelines:
> For optimal performance, use thinner gaskets when possible.
> Minimum recommended assembly stress = 4,800 psi.
> Preferred assembly stress = 6,000 psi to 10,000 psi.
> Retorque the bolts/studs prior to pressurizing the assembly.
> If the service is superheated steam, contact Applications Engineering.
