BS104B - #104B Beltservice E15/3 U1/QW Black AS Conveyor Belt

$10.00
SKU 104B Beltservice

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

PRODUCT DESCRIPTION


Beltservice Corperation Belting - Lightweight Thermoplastic Belting - MonoPro® 2 & 3 Ply Poly PVC/PU Bare x Bare
Features:
  • Nos. 104 & 104AS meet FDA standards and are excellent for accumulation and diverting applications.
  • 104 is oil and grease resistant, as well as being odorless.
  • 104AS has a low friction polyester fabric on both sides, PU skim, and is antistatic.

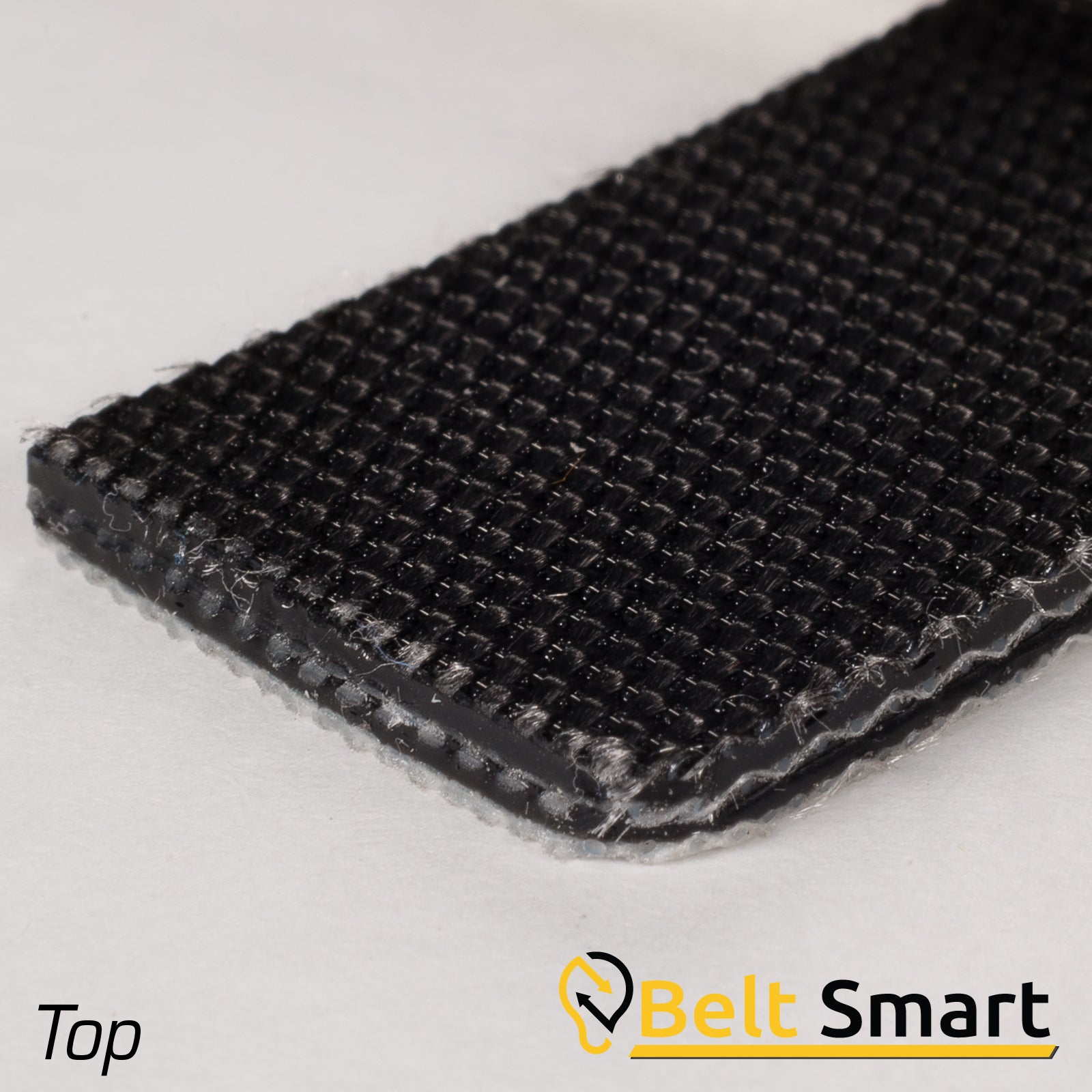

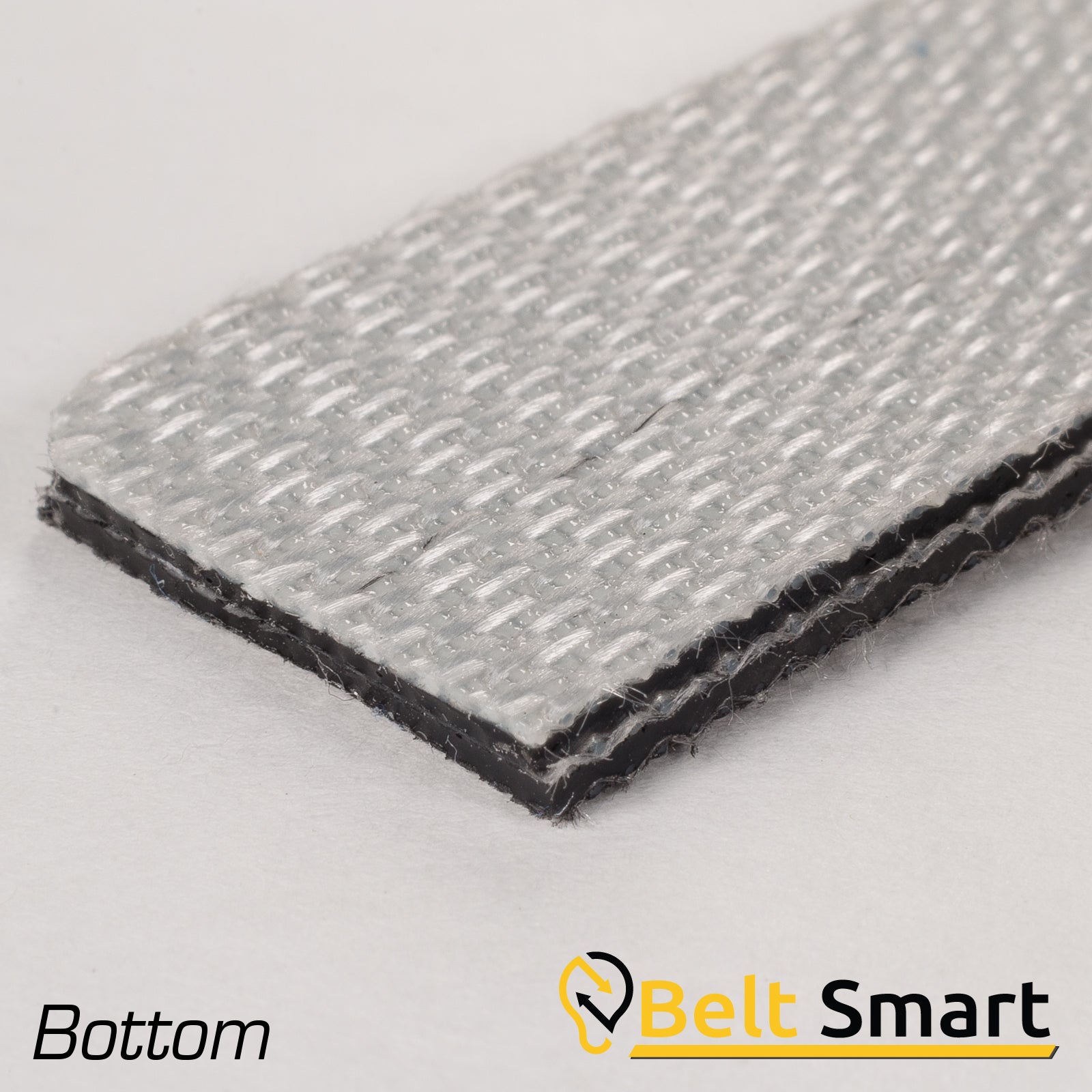

  • Three ply No. 104B has a PU impregnated top cover and quiet weave (QW) bottom - designed for tough, highly abrasive applications.
Specifications:
  • Nos. 104 & 104AS meet FDA standards.
E8/2 0/V/0 White
NA FDA
Pt No.: 104
E8/2 U0/U0 White
AS FDA
Pt No.: 104AS
E15/3 U1/QW Black
AS
Pt No.: 104B
Thickness .059" .040" N/A
Covers B x B B x B N/A
Carcass Mono/Multi Mono/Multi N/A
Working Tension
per Inch Width
67 lbs. 56 lbs. N/A
Approx. Weight
Lbs. Per Inch Width
.037" .024" N/A
Min. Pulley Diameter 2" 3/4" N/A
Temperature Range 10 deg. F / 180 deg. F -4 deg. F / 212 deg. F N/A
Coefficient of Friction .15 .15 N/A
Anti-Static No Yes Yes
Clipper Lace #36 #36 N/A
AS = Anti-Static
Mono = Monofilament
Multi = Multifilament
