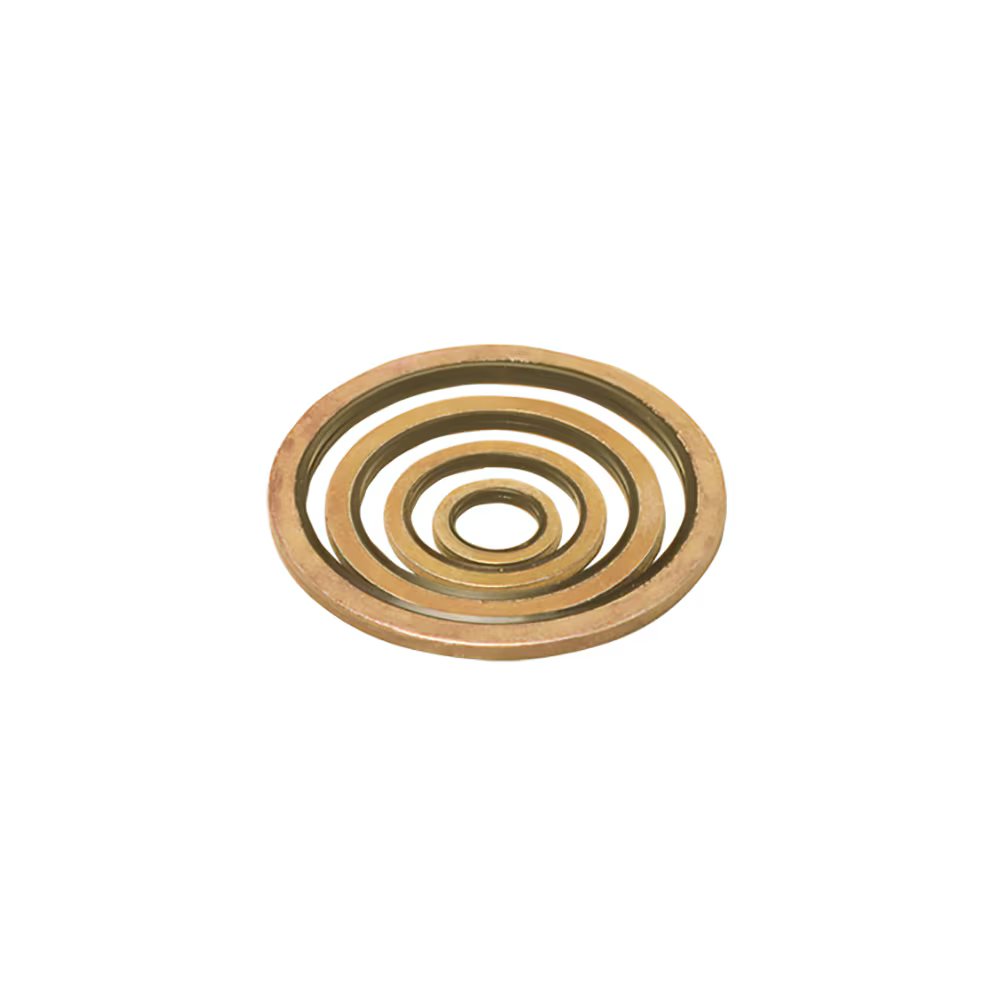

0137 33 00 by Parker | Legris Bonded Seal | 1" BSPP Thread Size | 42 mm OD | Zinc-Plated Steel

Minimum Order Quantity: 5 Units

Sale price$2.12

by Parker Hannifin
Sealing Accessories:0137 Bonded Seal


 More payment options
Quantity Price Each
20–49 $2.01
50–99 $1.91
100+ $1.70
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0137 Series
Shape:

No Orientation

Material(s):
  • Zinc-Plated Steel
Adapters and Manifolds:
Part Number C G1 G2 K Kg
0137 12 00 M12 12.7 mm 19 mm 1.5 mm .001 Kg
0137 14 00 M14 14.7 mm 21 mm 1.5 mm .002 Kg
0137 16 00 M16 16.7 mm 23 mm 1.5 mm .002 Kg
0137 18 00 M18 18.7 mm 27 mm 2 mm .004 Kg
0137 20 00 M20 20.7 mm 29 mm 2 mm .004 Kg
0137 22 00 M22 22.7 mm 31 mm 2 mm .005 Kg
0137 24 00 M24 24.7 mm 33 mm 2 mm .005 Kg
0137 10 00 1/8" 10.7 mm 17 mm 1.5 mm .001 Kg
0137 13 00 1/4" 13.7 mm 20.6 mm 2.1 mm .002 Kg
0137 17 00 3/8" 17.4 mm 23.7 mm 1.5 mm .002 Kg
0137 21 00 1/2" 21.5 mm 28.6 mm 2.5 mm .004 Kg
0137 27 00 3/4" 27 mm 35.3 mm 2 mm .007 Kg
0137 33 00 1" 33.7 mm 42 mm 2 mm .007 Kg
0137 42 00 1-1/4" 43 mm 54 mm 2.5 mm .013 Kg
0137 48 00 1-1/2" 49 mm 60 mm 2.5 mm .015 Kg

Note: to use these bonded seals successfully it is necessary to spot face around the female
thread to provide a sealing “land“.
The diameter should be 0.3 mm to 0.5 mm greater than the external diameter of the seal.
The surface finish of the thread should not exceed 12 µ.
