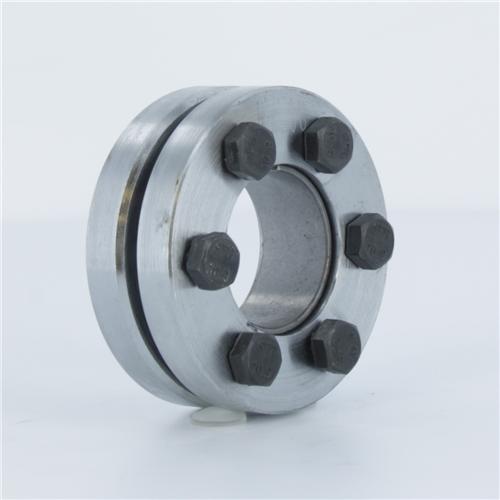

B0241 by Fenner Drives | B-LOC Shrink Disc SD10 | Standard Duty | Size: 24-10 | Shaft Diameter Range: 5/8"-0.774" | Steel
Fenner Drives

B0241 by Fenner Drives | B-LOC Shrink Disc SD10 | Standard Duty | Size: 24-10 | Shaft Diameter Range: 5/8"-0.774" | Steel

Sale price$70.18
Fenner Drives - Power Transmission - Keyless Locking Devices - B-LOC® Shrink Disc SD10 - Standard Duty
 More payment options

Product Data:

Brand:
  • B-LOC
Series:
  • SD10 Series
Overview:
  • The B-LOC SD10 Series 24-10 Shrink Disc is an external locking device that provides a high capacity, zero-backlash shaft to hub on shafts ranging from 5/8" to 0.774" in diameter by means of a mechanical interference fit and transmits between 138 ft lbs and 278 ft lbs of torque depending on the specific shaft size.
Description:
  • B-LOC SD10 Series 24-10 Shrink Discs are external locking devices that provide a zero-backlash frictional connection that will never wear or pound out and can accommodate high-torque, thrust, bending, and/or radial loads. The SD10 Series Shrink Discs are also extremely concentric and maintain a well-balanced mechanical interference fit. There is no axial movement during installation of this product.


  • Best Suited For: Applications needing to connect a hollow shaft over a solid shaft. Commonly used on hollow output shaft gear boxes or flange couplings.


  • Extremely concentric and well-balanced mechanical interference fit
  • No axial movement during installation


    • Features of Fenner Drives Keyless Bushings:
  • Ability to transmit high torques
  • True zero-backlash
  • Less equipment downtime
  • Ability to mount over existing keyways
  • Complete axial and radial adjustability
  • Simple installation, adjustment and removal


    • All Fenner Drives keyless locking devices operate using the simple wedge principle. An axial force is applied- by either a hex nut (Trantorque) or a series of annular screws (B-LOC)- to engage circular steel rings with mating tapers. The resulting wedge action creates a radial force on the tapered rings, one of which contracts to squeeze the shaft while the other expands and presses into the component bore.
Notes:
  • Inner rings of all shrink discs are supplied with one lengthwise slit.
  • Shrink discs are available for shafts up to 40" diameter and in a variety of special designs.
  • Maximum shaft sizes listed for Shrink Disc Series SD10 and SD30 re.ect equal section moduli of shaft and hub (maximum shaft diameter = d/1.221).
  • Larger shrink discs for shafts up to 40" diameter are available on request. Please call customer service

SPECIFICATIONS

Series: SD10 Axial Movement: No
Installation Torque: 3.6 ft lb Internal/ External: External
Material: Zinc Chromate/Chrome Plated Steel Metric/Inch: Inch
Releasing/ Locking: Releasing Screw Size: M5 x 16
Self-Centering: Yes Shaft Diameter: 625-.774
Taper: Double Torque Max: 278
Torque Min: 138

Ma Mt
Part Number Size SD Bore (Hub OD) Hub OD Tolerance Shaft Diameter Range Locking Screws Install Torque Max. Transmitted Torque
d (inches) TLd (Inch) ds-MIN (ft lb) ds-MAX (ft lb) Qty Size (ft lb) ds-MIN (ft lb) ds-MAX (ft lb) A (inch) D (inch) L (inch) H (inch) e (inch) d1 (inch) R (inch)
B0241 24-10 0.945" + 0 / -0.002" 5/8" 0.774" 6 M5 x 16 3.6 ft lb 138 ft lb 278 ft lb 1.417" 1.97" 0.551" 0.71" 0.080" 1.023" 1/16"
B0301 30-10 B0301" + 0 / -0.002" 3/4" 0.967" 7 M5 x 18 3.6 ft lb 177 ft lb 407 ft lb 1.732" 2.36" 0.629" 0.79" 0.081" 1.259" 1/16"
B0361 36-10 1.417" + 0 / -0.002" 7/8" 1.161" 5 M6 x 20 8.7 ft lb 315 ft lb 666 ft lb 2.047" 2.83" 0.700" 0.87" 0.085" 1.496" 1/16"
B0441 44-10 1.732" + 0 / -0.002" 1-1/8" 1.419" 7 M6 x 20 8.7 ft lb 683 ft lb 1198 ft lb 2.402" 3.15" 0.787" 0.94" 0.077" 1.850" 1/16"
B0501 50-10 1.969" + 0 / -0.002" 1-3/8" 1.612" 8 M6 x 22 8.7 ft lb 964 ft lb 1565 ft lb 2.756" 3.54" 0.866" 1.02" 0.077" 2.086" 1/16"
B0551 55-10 2.165" + 0 / -0.002" 1-1/2" 1.773" 8 M6 x 25 8.7 ft lb 1014 ft lb 1707 ft lb 2.953" 3.94" 0.905" 1.14" 0.118" 2.283" 3/32"
B0621 62-10 2.441" + 0 / -0.002" 1-3/4" 1.999" 10 M6 x 25 8.7 ft lb 1718 ft lb 2375 ft lb 3.386" 4.33" 0.905" 1.14" 0.118" 2.283" 3/32"
B0681 68-10 2.677" + 0 / -0.002" 1-7/8" 2.193" 10 M6 x 25 8.7 ft lb 1760 ft lb 2606 ft lb 3.386" 4.53" 0.905" 1.14" 0.118" 2.283" 3/32"
B0751 75-10 2.953" + 0 / -0.002" 2-1/8" 2.418" 7 M8 x 25 22 ft lb 2792 ft lb 4057 ft lb 3.937" 5.43" 0.984" 1.22" 0.118" 3.110" 1/8"
B0801 80-10 3.150" + 0 / -0.002" 2-3/8" 2.580" 7 M8 x 25 22 ft lb 3416 ft lb 4331 ft lb 3.937" 5.71" 0.984" 1.22" 0.118" 3.307" 1/8"
B0901 90-10 3.543" + 0 / -0.004" 2-1/2" 2.902" 10 M8 x 30 22 ft lb 4751 ft lb 7139 ft lb 4.488" 6.10" 1.181" 1.49" 0.155" 3.700" 1/8"
B1001 100-10 3.937" + 0 / -0.004" 2-7/8" 3.224" 12 M8 x 35 22 ft lb 7059 ft lb 9586 ft lb 4.882" 6.69" 1.338" 1.69" 0.176" 4.094" 1/8"
B1101 110-10 4.331" + 0 / -0.004" 3-1/8" 3.547" 9 M10 x 40 44 ft lb 9013 ft lb 12602 ft lb 5.354" 7.28" 1.535" 1.93" 0.198" 4.488" 1/8"
B1251 125-10 4.921" + 0 / -0.004" 3-1/2" 4.031" 12 M10 x 40 44 ft lb 13710 ft lb 19540 ft lb 6.299" 8.46" 1.653" 2.04" 0.194" 5.275" 1/8"
B1401 140-10 5.512" + 0 / -0.004" 4" 4.514" 10 M12 x 45 74 ft lb 19648 ft lb 26440 ft lb 6.890" 9.06" 1.811" 2.28" 0.235" 5.708" 3/16"
B1551 155-10 6.102" + 0 / -0.004" 4-1/2" 4.998" 12 M12 x 50 74 ft lb 27515 ft lb 34049 ft lb 7.559" 10.36" 1.968" 2.44" 0.236" 6.496" 3/16"
H1651 165-10 6.496" + 0 / -0.004" 4-7/8" 5.320" 8 M16 x 55 185 ft lb 37737 ft lb 47135 ft lb 8.268" 11.42" 2.204" 2.67" 0.233" 6.889" 3/16"
B1751 175-10 6.890" + 0 / -0.004" 5-1/4" 5.643" 8 M16 x 55 185 ft lb 41620 ft lb 50005 ft lb 8.661" 11.81" 2.204" 2.67" 0.233" 7.283" 3/16"
H1951 195-10 7.677" + 0 / -0.004" 5-7/8" 6.288" 12 M16 x 65 185 ft lb 71908 ft lb 84926 ft lb 9.685" 13.78" 2.795" 3.34" 0.273" 8.110" 3/16"
B2001 200-10 7.874" + 0 / -0.004" 6-1/4" 6.449" 12 M16 x 65 185 ft lb 80674 ft lb 87096 ft lb 9.685" 13.78" 2.795" 3.34" 0.273" 8.110" 3/16"

Metric hex head locking screws DIN 931 grade 10.9 (See Ma for install torque).
