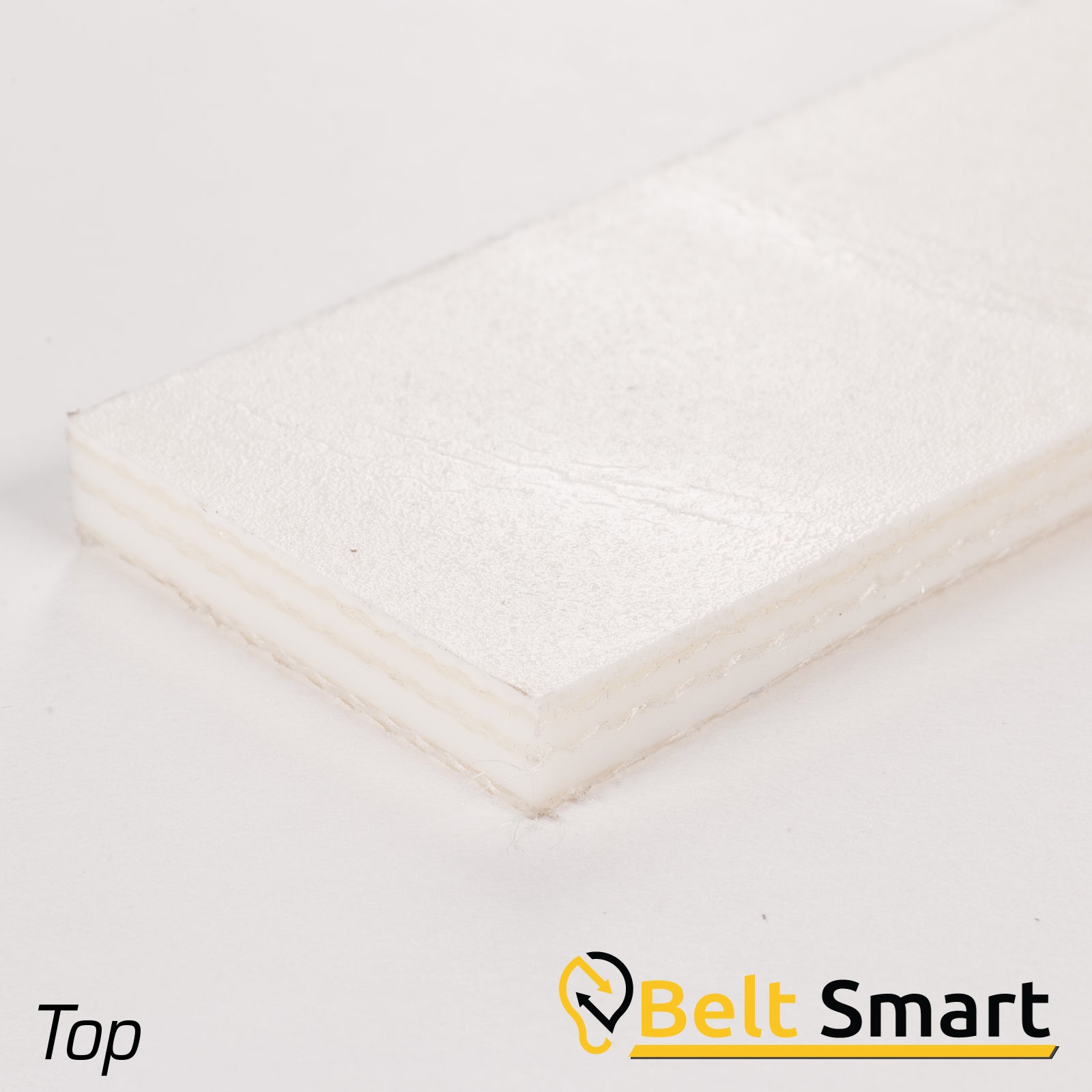

BS008C - #8c Beltservice 3 Ply Poly 150 White RMV COS Conveyor Belt
Request a custom quote for Conveyor Belt Assemblies by providing detailed information in the Contact Form below.
Contact Us
Need a Conveyor Belt?
Please provide as much detail you can on your use case and one of our agents will respond ASAP
$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE
Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.
Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.
If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.
| Applications: | |||
|---|---|---|---|
|
|||
| Features: | |||
|
|||
| Specifications: | |||
|
| 2 Ply Poly 100 White RMV COS Pt No.: 8b |
3 Ply Poly 150 White RMV COS Pt No.: 8c |
|
|---|---|---|
| Thickness | 1/8" | 9/64" |
| Covers | 3/64" x FS | |
| Carcass | 50 lbs. per Ply Polyester | |
| Working Tension per inch Width |
100 lbs. | 150 lbs. |
| Approx. Weight lbs per inch Width |
.062 lbs. | .080 lbs. |
| Min. Pulley Diameter | 2" | 3" |
| Temperature Range | 0 deg. F / 180 deg. F | |
| Clipper Lace | #1 | #2 |
| Alligator Lace | #7 | #15 |
